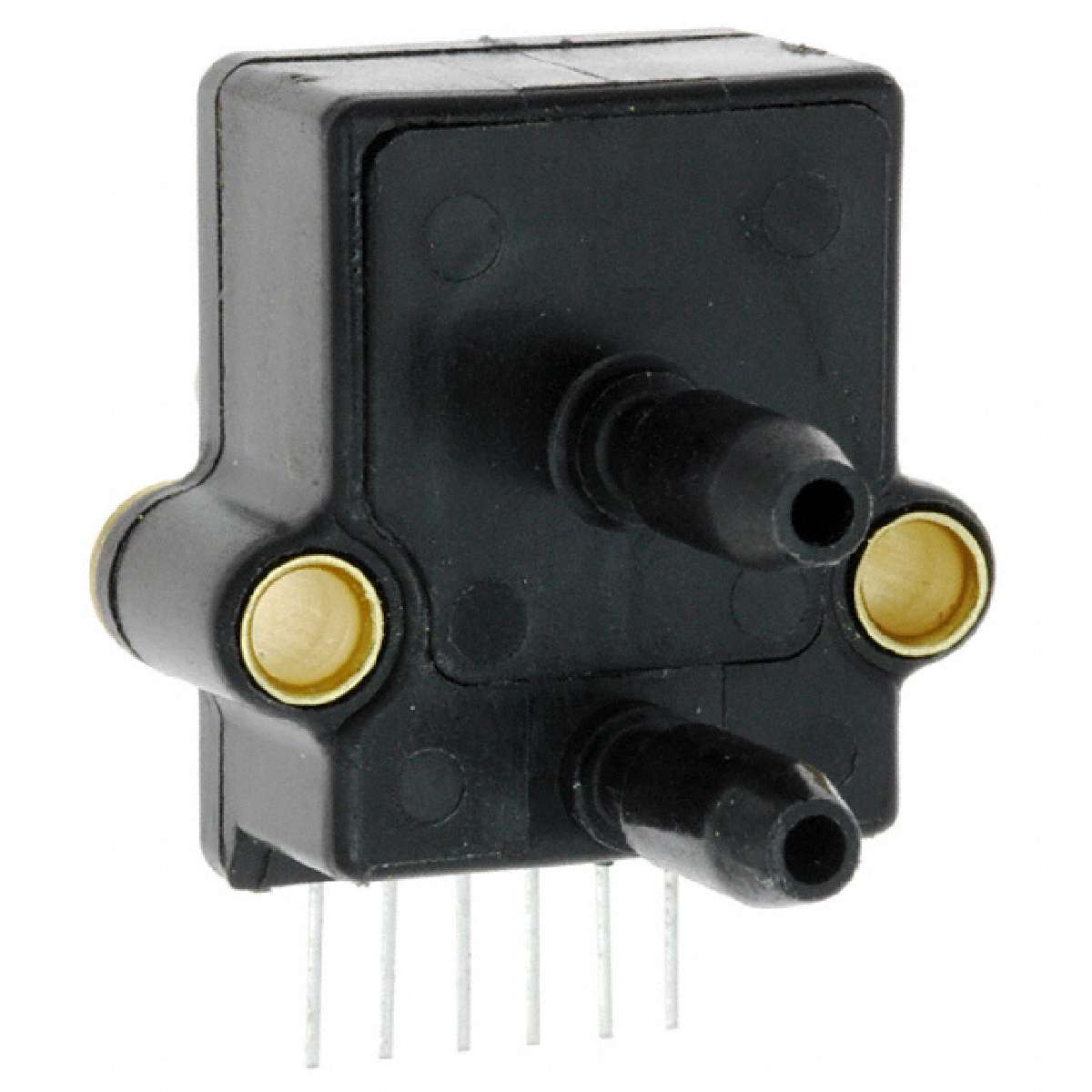

ASCX05DN

微观压力传感器 Microstructure Pressure Sensors

This series is a signal-conditioned version of ’s proven performer and industry leading SCX series sensor.

This amplified ASCX device is in a package the same as the SCX but it offers a high level 4.5 V span output on a very cost-effective basis. This family is fully calibrated and temperature compensated over a range of 0 °C to 70 °C [32 °F to 158 °F] but can be operated from -25 °C to 105 °C [-13 °F to 221 °F]. These sensors are intended for use with non-corrosive, non-ionic working fluids such as air and dry gases.

FEATURES

• 5 Vdc Supply

• High Level Voltage Output

• Field Interchangeable

• Calibrated and Temperature Compensated

• Small Form Factor

• Low Power

• Offset Adjust

TYPICAL APPLICATIONS

• Medical Equipment

• Industrial Controls

• Pneumatic Controls
