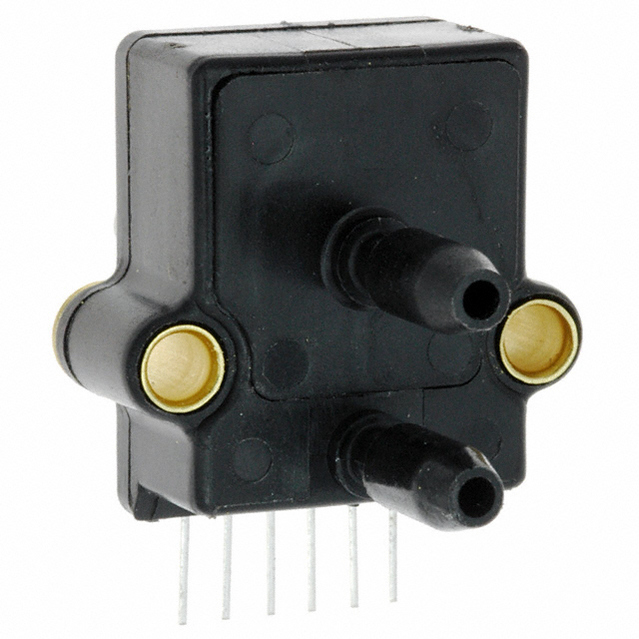

ASCX30DN

微观压力传感器 Microstructure Pressure Sensors

The ASCX Series is a signal-conditioned version of "s proven performer and industry leading SCX Series. The amplified ASCX device is in the same package as the SCX but it offers a high level output 4.5 VDC span. This family is fully calibrated and temperature compensated over a range of 0°C to +70°C +32°F to +158°F but can be operated from –25°C to +105°C –13°F to +221°F. They are intended for use with non-corrosive, non-ionic working fluids such as air and dry gases. Devices are available to measure absolute, differential and gage pressures from 1 psi ASCX01 up to 150 psi ASCX150. The absolute devices A have an internal vacuum reference and an output voltage proportional to absolute pressure. Differential devices D allow application of pressure to either side of the sensing diaphragm and can be used for gage or differential pressure measurements. The ASCX Series devices feature an integrated circuit IC sensor element and laser trimmed thick film ceramic housed in a compact solvent resistant case. It provides excellent corrosion resistance and isolation to external packaging stresses. The package has convenient mounting holes and pressure ports for ease of use with standard plastic tubing for pressure connection. All ASCX devices are calibrated for span to within ±1% typically ±0.2% of FSO. The devices are characterized for operation from a single 5 VDC supply although sensitivity is ratio metric to the supply voltage and any DC supply from 5 VDC to 16 VDC is acceptable. The ACSX Series requires very low quiescent current compared to other signal conditioned pressure sensors, thus, this series is ideal for battery-powered applications. The 100 μSec response time makes this series an excellent choice for computer peripherals and pneumatic control applications.

**Features:**

* 5.0 VDC Supply

* High Level Voltage Output

* Field Interchangeable

* Calibrated and Temperature Compensated

* Low Power

* Offset Adjust

**Typical Applications:**

* Medical Equipment

* Industrial Controls

* Pneumatic Controls
