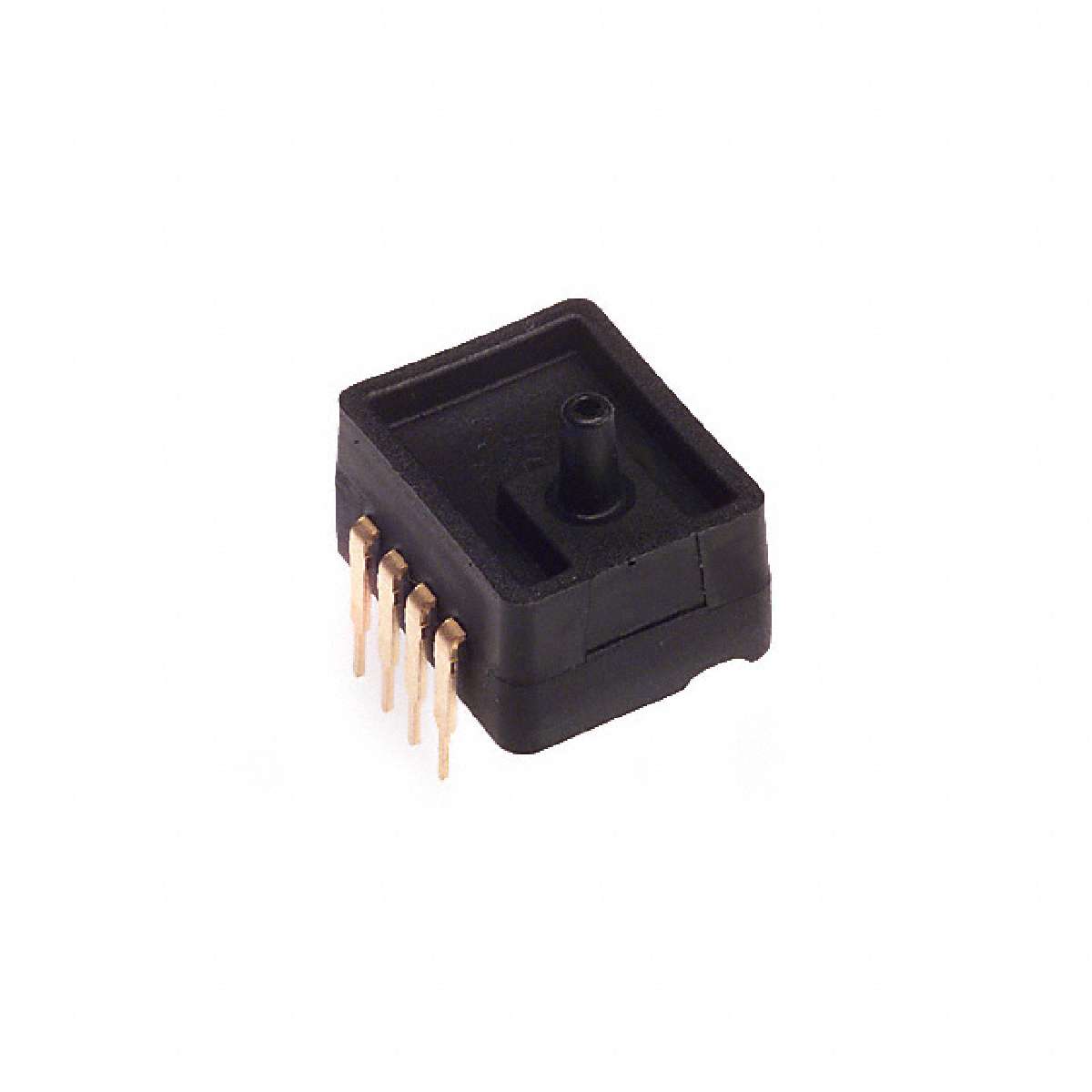

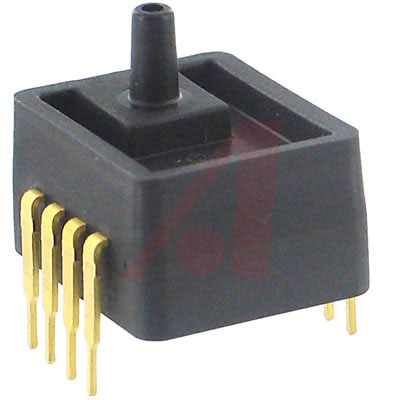

ASDX005G24R

板机接口压力传感器 0 to 5Psi Gauge 8-Pin PDIP-G2

The ASDX Series is an amplified version of "s proven performer and industry leading SDX Series sensor. The amplified ASDX sensors footprint is slightly larger than the SDX but it offers a high level output 4.0 VDC span. This Series is fully calibrated and temperature compensated with on-board Application Specific Integrated Circuitry ASIC. They are intended for use with non-corrosive, non-ionic working fluids; such as air and dry gases. Sensors are available to measure absolute, differential and gage pressures. The absolute devices have an internal vacuum reference and an output voltage proportional to absolute pressure. Differential devices allow application of pressure to either side of the sensing diaphragm and can be used for gauge or differential measurements. All ASDX devices are accurate to within ±2.0% full scale, designed for operation from a single 5.0 VDC supply and are manufactured in accordance with ISO 9001 standards.

**Features:**

* ASIC Enhanced Output

* Wide Compensated Temperature Range 0°C to +85°C +32°F to +185°F

* Available in Absolute, Differential and Gage Types

* Pressure Ranges from 0 psi to 1 psi Through 0 psi to 100 psi

* Accuracy: ±2% Max. Volts Full Scale

* Small Form Factor

* Quantization Step of 3 mV

* Response Time: 8 mSec

**Typical Applications:**

Medical Instrumentation

* Barometry

HVAC Controls

* Pneumatic Controls
