TEXAS INSTRUMENTS AM26LS32ACNSR. 芯片, 线路接收器, RS422/RS423, 5.25V, SOP-16
The is a quadruple differential Line Receiver for balanced and unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a bus-organized system. Fail-safe design ensures that, if the inputs are open, the outputs always are high. It incorporates an additional stage of amplification to improve sensitivity. The input impedance has been increased, resulting in less loading of the bus line. The additional stage has increased propagation delay, however, this does not affect interchangeability in most applications.
电源电压DC 4.75V min
供电电流 70 mA
针脚数 16
数据速率 10.0 Mbps
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 16

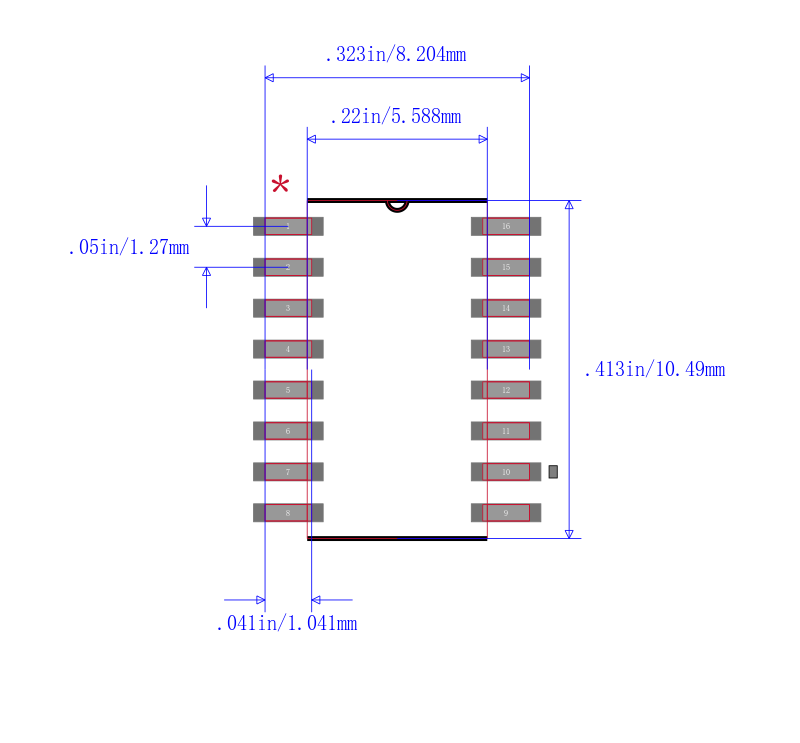

封装 SOP-16
封装 SOP-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AM26LS32ACNSR TI 德州仪器 | 当前型号 | 当前型号 |
SN75175N 德州仪器 | 完全替代 | AM26LS32ACNSR和SN75175N的区别 |
AM26LS32ACNSRG4 德州仪器 | 完全替代 | AM26LS32ACNSR和AM26LS32ACNSRG4的区别 |
AM26LS31CDR 德州仪器 | 类似代替 | AM26LS32ACNSR和AM26LS31CDR的区别 |
