ADM3490ARZ-REEL7

ADM3490ARZ-REEL7图片1
ADM3490ARZ-REEL7图片2
ADM3490ARZ-REEL7图片3
ADM3490ARZ-REEL7图片4
ADM3490ARZ-REEL7概述

Single Transmitter/Receiver RS-422/RS-485 8Pin SOIC N T/R

Product Details

The ADM3483/ADM3485/ADM3488/ADM3490/ADM3491 are low power, differential line transceivers designed to operate using a single 3.3 V power supply. Low power consumption, coupled with a shutdown mode, makes the ADM3483/ADM3485/ADM3488/ ADM3490/ADM3491 ideal for power-sensitive applications.

The ADM3488/ADM3490/ADM3491 feature full-duplex com-munication, while the ADM3483/ADM3485 are designed for half-duplex communication.

The ADM3485/ADM3490/ADM3491 transmit at up to 10 Mbps. The receiver input impedance is 12 kΩ, allowing up to 32 transceivers to be connected on the bus. A thermal shutdown circuit prevents excessive power dissipation caused by bus contention or by output shorting. If a significant temperature increase is detected in the internal driver circuitry during fault conditions, then the thermal shutdown circuit forces the driver output into a high impedance state. If the inputs are unconnected floating, the receiver contains a fail-safe feature that results in a logic high output state. The parts are fully specified over the commercial and industrial temperature ranges. The ADM3483/ADM3485/ADM3488/ADM3490 are available in 8-lead SOIC_N; the ADM3491 is available in a 14-lead SOIC_N.

**Applications**

.
Low-Power RS-485 Applications
.
Telecom
.
Industrial Process Control
.
HVAC

### Features and Benefits

.
Operate with 3.3 V supply
.
Interoperable with 5 V logic
.
EIA RS-485/RS-422 Compliant over Full Common-Range
.
Data Rate Options: 10 Mbps
.
Half and Full Duplex Options
.
Up to 32 Transceivers on a Bus
.
-7V to +12V Bus Common Mode Range
.
Specified over –40°C to +85°C Temperature Range
.
8 ns skew
.
Available in 8-Lead SOIC
ADM3490ARZ-REEL7中文资料参数规格
技术参数

电源电压DC 3.60V max

供电电流 2.2 mA

数据速率 10.0 Mbps

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 3V ~ 3.6V

封装参数

安装方式 Surface Mount

引脚数 8

封装公制 SOIC

封装 SOIC-8

外形尺寸

高度 1.5 mm

封装公制 SOIC

封装 SOIC-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

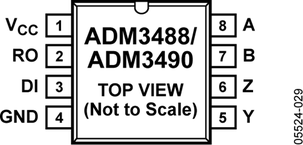

ADM3490ARZ-REEL7引脚图与封装图
ADM3490ARZ-REEL7引脚图
ADM3490ARZ-REEL7封装图
ADM3490ARZ-REEL7电路图
ADM3490ARZ-REEL7封装焊盘图
在线购买ADM3490ARZ-REEL7
型号: ADM3490ARZ-REEL7
制造商: ADI 亚德诺
描述:Single Transmitter/Receiver RS-422/RS-485 8Pin SOIC N T/R
替代型号ADM3490ARZ-REEL7
型号/品牌 代替类型 替代型号对比

ADM3490ARZ-REEL7

ADI 亚德诺

当前型号

当前型号

ADM3490ARZ

亚德诺

类似代替

ADM3490ARZ-REEL7和ADM3490ARZ的区别

MAX3490EESA+

美信

功能相似

ADM3490ARZ-REEL7和MAX3490EESA+的区别

MAX3490EESA

美信

功能相似

ADM3490ARZ-REEL7和MAX3490EESA的区别
