ANALOG DEVICES ADUM1210BRZ 数字隔离器, 双路, 2通道, 50 ns, 2.7 V, 5.5 V, SOIC, 8 引脚

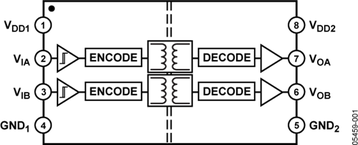

The is a dual-channel Digital Isolator based on Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives such as optocoupler devices. By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The concerns of the typical optocoupler regarding uncertain current transfer ratios, nonlinear transfer functions and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with iCoupler products. Furthermore, iCoupler devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates.
电源电压DC 2.70V min
上升/下降时间 2.5 ns
输出电流 ≤250 µA
供电电流 4.3 mA
通道数 2
针脚数 8
数据速率 10.0 Mbps
隔离电压 2500 Vrms
下降时间Max 2.5 ns
上升时间Max 2.5 ns
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, Industrial, Communications & Networking, 通信与网络, Automotive, Industrial, Communications & Networking, Hybrid Electric Vehicles
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADUM1210BRZ ADI 亚德诺 | 当前型号 | 当前型号 |
ADUM1210BRZ-RL7 亚德诺 | 类似代替 | ADUM1210BRZ和ADUM1210BRZ-RL7的区别 |
IL711-3E NVE Corp | 功能相似 | ADUM1210BRZ和IL711-3E的区别 |
IL612-3E NVE Corp | 功能相似 | ADUM1210BRZ和IL612-3E的区别 |
