3.3 V , 200 Mbps的半双工和全双工 3.3 V, 200 Mbps, Half- and Full-Duplex
Product Details
The ADN4691E/ADN4693E/ADN4696E/ADN4697E are multipoint, low voltage differential signaling M-LVDS transceivers driver and receiver pairs that can operate at up to 200 Mbps 100 MHz. The receivers detect the bus state with a differential input of as little as 50 mV over a common-mode voltage range of −1 V to +3.4 V. ESD protection of up to ±15 kV is implemented on the bus pins. The devices adhere to the TIA/EIA-899 standard for M-LVDS and complement TIA/EIA- 644 LVDS devices with additional multipoint capabilities.
The ADN4691E/ADN4693E are Type 1 receivers with 25 mV of hysteresis so that slow-changing signals or loss of input does not lead to output oscillations. The ADN4696E/ADN4697E are Type 2 receivers exhibiting an offset threshold, guaranteeing the output state when the bus is idle bus-idle fail-safe or the inputs are open open-circuit fail-safe.

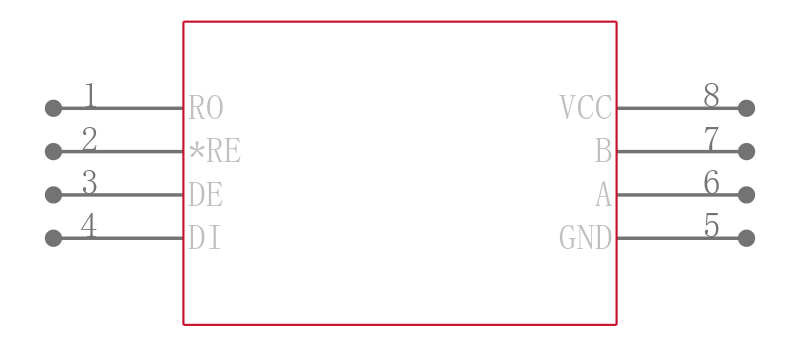

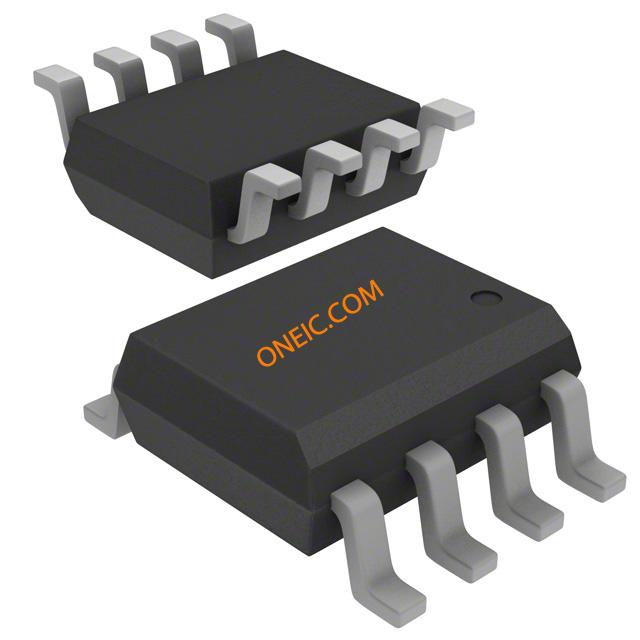

The devices are available as half-duplex in an 8-lead SOIC package the ADN4691E/ADN4696E or as full-duplex in a 14-lead SOIC package the ADN4693E/ADN4697E.
Applications
### Features and Benefits
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADN4696EBRZ-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADN4696EBRZ 亚德诺 | 完全替代 | ADN4696EBRZ-RL7和ADN4696EBRZ的区别 |
SN65MLVD206DR 德州仪器 | 功能相似 | ADN4696EBRZ-RL7和SN65MLVD206DR的区别 |
SN65MLVD206DG4 德州仪器 | 功能相似 | ADN4696EBRZ-RL7和SN65MLVD206DG4的区别 |
