Digital Isolator CMOS 2CH 2Mbps 20Pin SSOP T/R
Product Details
The ADUM1241 is a micropower, dual-channel digital isolator which has a default high and 1/1 directionality based on the Analog Devices, Inc., iCoupler® technology,Quad-channel products available. Combining high speed CMOS and monolithic air core transformer technologies, these isolation components provide outstanding performance characteristics superior to alternatives, such as optocoupler devices, yet require the lowest power of any available isolation product.
Packaged in an 8-lead SOIC, this series of quad, 3 kV digital isolation devices operate with supplies as low as 2.5 V, offering the lowest available power consumption at a fraction of the power of comparable isolators at comparable data rates up to 2 Mbps. In addition, all models provide low pulse width distortion <8 ns for A grade and an input glitch filter for extraneous noise disturbance protection.
All models operate with the supply voltage on either side ranging as low as 2.25 V, providing compatibility with lower voltage systems, as well as enabling voltage translation functionality across the isolation barrier. All products also have an output default logic state in the absence of the input power. When power is first applied, or is not yet applied to the input side, the ADuM1240 and ADuM1241 have a default high output and the ADuM1245 and ADuM1246 have a default low output.
**PRODUCT HIGHLIGHTS**
1. Outstanding Power Performance. These 3 kV digital isolators operate with 2.5 V supplies.
2. Distortion and Noise Protection. Low pulse width distortion < 8 ns for A grade models and an input glitch filter for extraneous noise disturbance protection.
_
i_Coupler Technology. Patented Analog Devices technology combining high speed CMOS and monolithic air core transformer technologies.
**APPLICATIONS**
### Features and Benefits
3.3 V operation
6 μA per channel quiescent current, refresh enabled
0.3 μA per channel quiescent current, refresh disabled
3 μA per channel quiescent current, refresh enabled
0.1 μA per channel quiescent current, refresh disabled
116 μA/Mbps per channel typical dynamic current
上升/下降时间 2 ns
通道数 2
耗散功率 1640 mW
隔离电压 3.75 kV
下降时间Max 2 ns
上升时间Max 2 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1640 mW
电源电压 2.25V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.25 V
安装方式 Surface Mount
引脚数 20

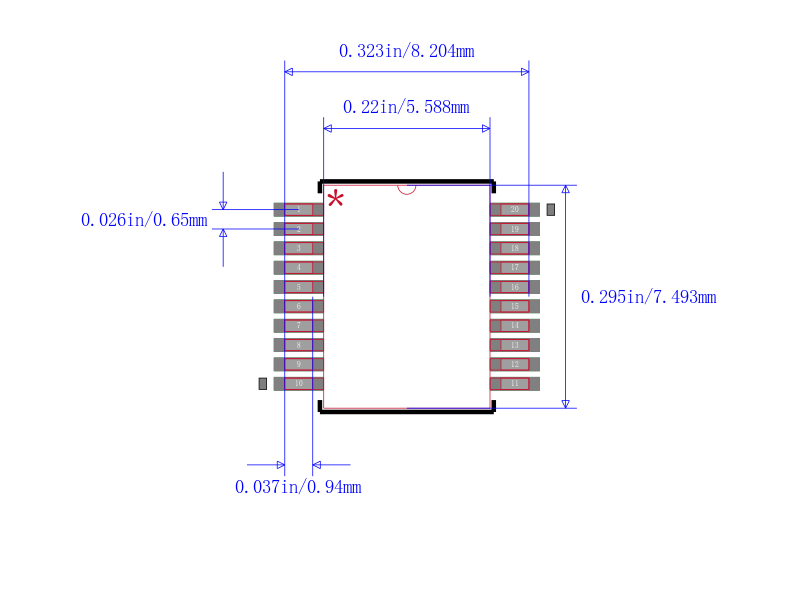

封装 SSOP-20
封装 SSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADUM1241ARSZ-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADUM1241ARSZ 亚德诺 | 类似代替 | ADUM1241ARSZ-RL7和ADUM1241ARSZ的区别 |
