超低功耗,双通道电容式转换器,用于近程传感 Ultra-Low Power, 2-Channel, Capacitance Converter for Proximity Sensing
Product Details
The AD7150 delivers a complete signal processing solution for capacitive proximity sensors, featuring an ultra-low power converter with fast response time. The AD7151 is a single-channel, lower power alternative to the AD7150.
The AD7150 uses Analog Devices, Inc., capacitance-to-digital converter CDC technology, which combines features important for interfacing to real sensors, such as high input sensitivity and high tolerance of both input parasitic ground capacitance and leakage current. The integrated adaptive threshold algorithm compensates for any variations in the sensor capacitance due to environmental factors like humidity and temperature or due to changes in the dielectric material over time.
By default, the AD7150 operates in standalone mode using the fixed power-up settings and indicates detection on two digital outputs. Alternatively, the AD7150 can be interfaced to a microcontroller via the serial interface, the internal registers can be programmed with user-defined settings, and the data and status can be read from the part.
The AD7150 operates with a 2.7 V to 3.6 V power supply. It is specified over the temperature range of −40°C to +85°C.
**Applications**
### Features and Benefits
2.7 V to 3.6 V, 100 μA
Sensor capacitance CSENS 0 pF up to 13 pF
Sensitivity to 1 fF
Standalone with fixed settings
Interfaced to a microcontroller for user-defined settings
供电电流 120 µA
耗散功率 0.43 mW
分辨率Bits 12.0
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount

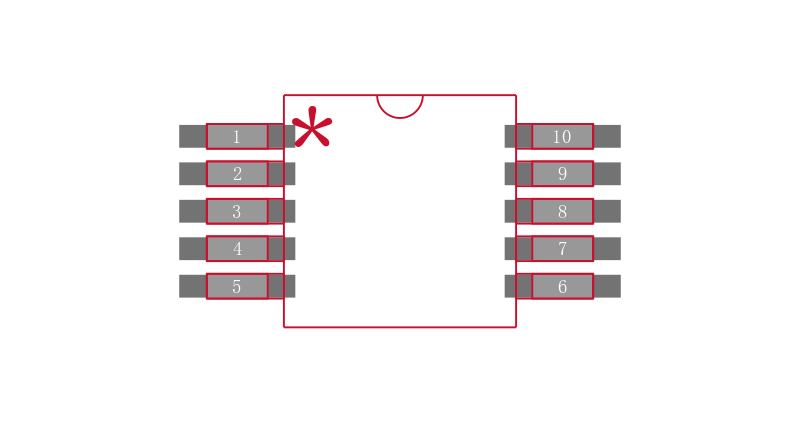

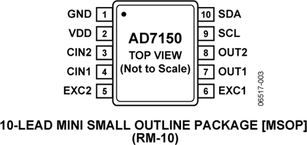

引脚数 10

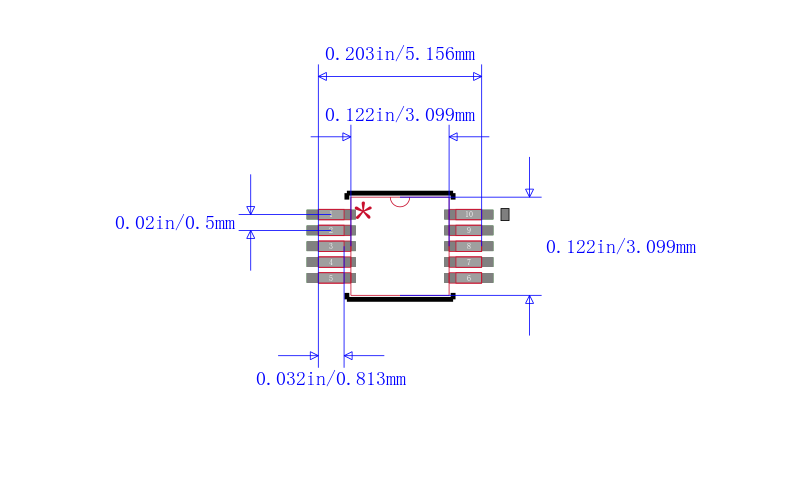

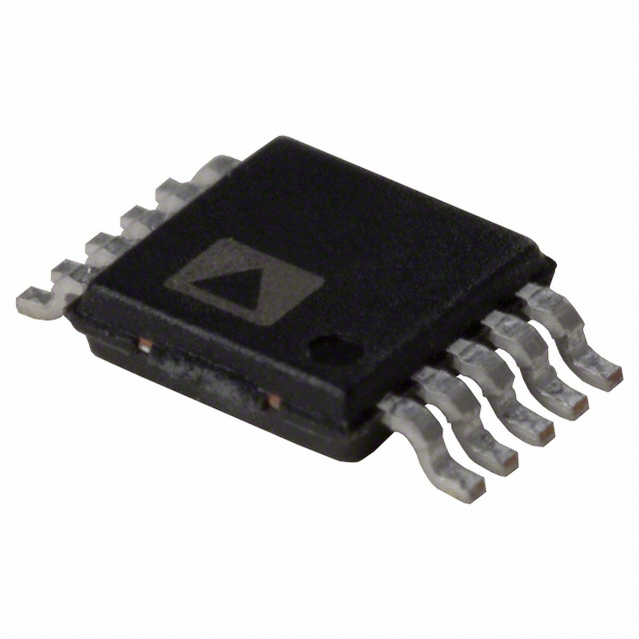

封装 MSOP-10
长度 3 mm
宽度 3 mm
高度 0.85 mm
封装 MSOP-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Healthcare, Building Technology, Life Sciences & Medical Instrumentation, Sensor Interface, Automotive, White Goods and Vending
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7150BRMZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD7151BRMZ 亚德诺 | 类似代替 | AD7150BRMZ-REEL和AD7151BRMZ的区别 |
AD7151BRMZ-REEL 亚德诺 | 类似代替 | AD7150BRMZ-REEL和AD7151BRMZ-REEL的区别 |
