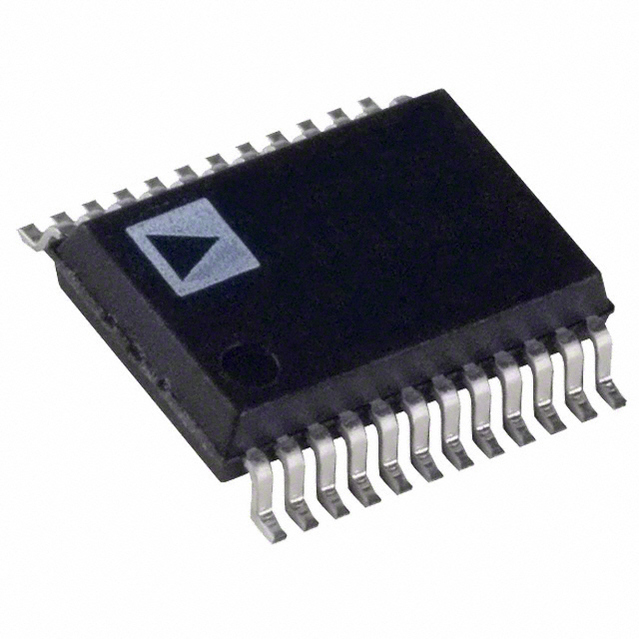

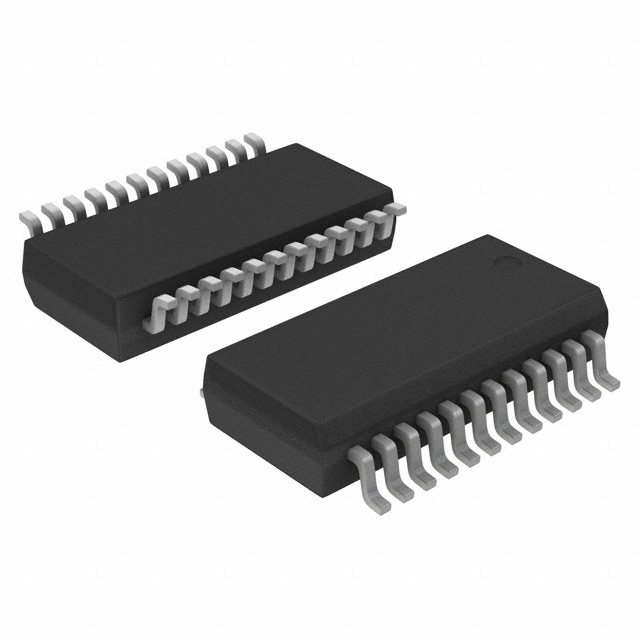

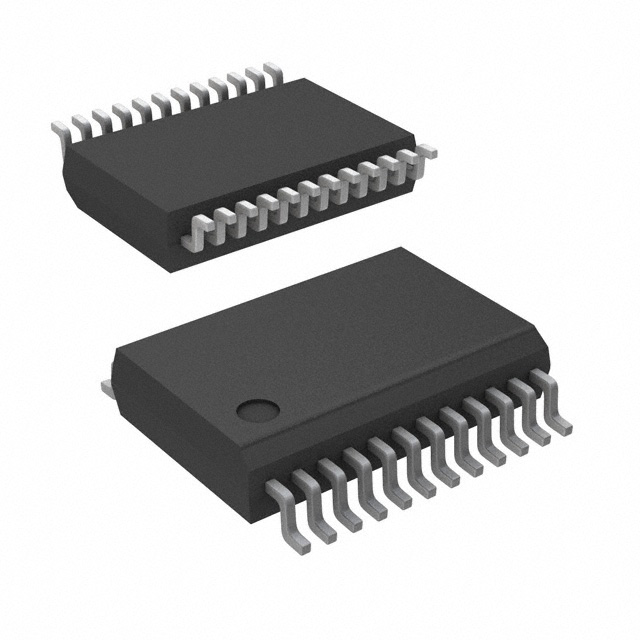

ADM208EARSZ-REEL

RS-232接口集成电路 5V RS-232 TRANSCEIVER W/COMPLIANCE I.C.

Product Details

The ADM2xxE is a family of robust RS-232 and V.28 interface devices which operates from a single +5 V power supply. These products are suitable for operation in harsh electrical environments and are compliant with the EU directive on EMC 89/336/ EEC. Both the level of emissions and immunity are in compliance. EM immunity includes ESD protection in excess of ±15 kV on all I-O lines 1000-4-2, Fast Transient Burst protection 1000-4-4 and Radiated Immunity 1000-4-3. EM emissions include radiated and conducted emissions as required by Information Technology Equipment EN55022, CISPR22.

All devices fully conform to the EIA-232E and CCITT V.28 specifications and operate at data rates up to 230 kbps.

Shutdown and Enable control pins are provided on some of the products.

The shutdown function on the ADM211E disables the charge pump and all transmitters and receivers. On the ADM213E the charge pump, all transmitters, and three of the five receivers are disabled. The remaining two receivers remain active thereby allowing monitoring of peripheral devices. This feature allows the device to be shut down until a peripheral device begins communication. The active receivers can alert the processor which can then take the ADM213E out of the shutdown mode.

Operating from a single +5 V supply, four external 0.1 µF capacitors are required.

The ADM206E is available in a 24-pin SO package. The ADM207E and ADM208E are available in 24-pin DIP, SO, SSOP and TSSOP packages. The ADM211E and ADM213E are available in 28-pin SO, SSOP and TSSOP packages.

All products are backward compatible with earlier ADM2xx products facilitating easy upgrading of older designs.

### Features and Benefits

.

Complies with 89/336/EEC EMC directive

.

ESD protection to IEC 1000-4-2 801-2

Contact discharge: ±8 kV

Air-gap discharge: ±15 kV

Human body model: ±15 kV

.

EFT/burst immunity

IEC 1000-4-4

.

Low EMI emissions EN 55022

.

Eliminates need for TransZorb® suppressors

.

230 kbps data rate guaranteed

.

Single 5 V power supply

.

Shutdown mode 1 μW

.

Plug-in upgrade for MAX2xxE

.

Space saving TSSOP package available
