ADM237LANZ

ADM237LANZ图片1
ADM237LANZ图片2
ADM237LANZ图片3
ADM237LANZ图片4
ADM237LANZ概述

Quint Transmitter Triple Receiver RS-232 24Pin PDIP Tube

Product Details

The ADM2xx family of line drivers/receivers is intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12 V is not available. The ADM223, ADM230L, ADM235L, ADM236L and ADM241L feature a low power shutdown mode that reduces power dissipation to less than 5 µW, making them ideally suited for battery powered equipment. Two receivers remain enabled during shutdown on the ADM223. The ADM233L and ADM235L do not require any external components and are particularly useful in applications where printed circuit board space is critical.

All members of the ADM230L family, except the ADM231L and the ADM239L, include two internal charge pump voltage converters that allow operation from a single +5 V supply. These converters convert the +5 V input power to the ±10 V required for RS-232 output levels. The ADM231L and ADM239L are designed to operate from +5 V and +12 V supplies. An internal +12 V to -12 V charge pump voltage converter generates the -12 V supply.

The ADM2xxL is an enhanced upgrade for the AD2xx family featuring lower power consumption, faster slew rate and operation with smaller 1 µF capacitors.

### Features and Benefits

.
Single 5 V Power Supply
.
Meets All EIA-232-E and V.28 Specifications
.
120 kB/s Data Rate
.
On-Board DC-DC Converters
.
±9 V Output Swing with 5 V Supply
.
Small 1 µF Capacitors
.
Low Power Shutdown ≤ µA
.
Receivers Active in Shutdown ADM223
.
±30 V Receiver Input Levels
.
Latch-Up FREE
.
Plug-In Upgrade for MAX223/230-241
.
Plug-In Upgrade for AD230–AD241
ADM237LANZ中文资料参数规格
技术参数

电源电压DC 5.00V max

供电电流 13.0 mA

数据速率 120 kbps

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.75V ~ 5.25V

电源电压Max 5.25 V

电源电压Min 4.75 V

封装参数

安装方式 Through Hole

引脚数 24

封装 DIP-24

外形尺寸

长度 31.75 mm

宽度 6.35 mm

高度 3.3 mm

封装 DIP-24

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ADM237LANZ引脚图与封装图

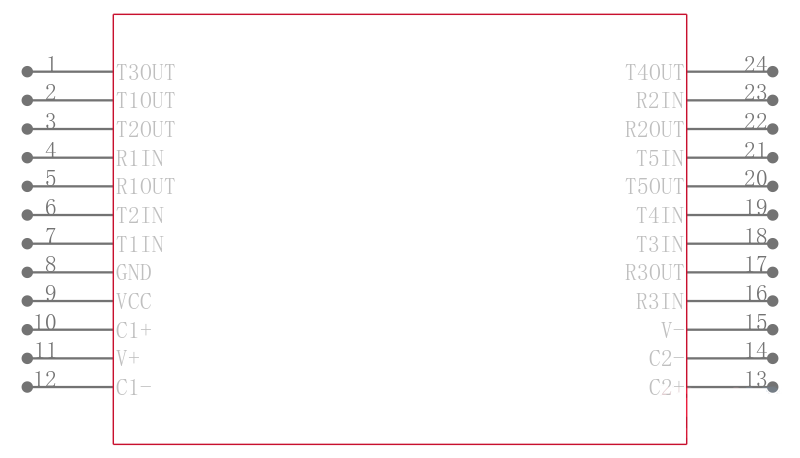

ADM237LANZ引脚图
ADM237LANZ封装图
ADM237LANZ电路图
ADM237LANZ封装焊盘图
在线购买ADM237LANZ
型号: ADM237LANZ
制造商: ADI 亚德诺
描述:Quint Transmitter Triple Receiver RS-232 24Pin PDIP Tube
替代型号ADM237LANZ
型号/品牌 代替类型 替代型号对比

ADM237LANZ

ADI 亚德诺

当前型号

当前型号

ADM237LAN

亚德诺

完全替代

ADM237LANZ和ADM237LAN的区别

ADM238LJNZ

亚德诺

功能相似

ADM237LANZ和ADM238LJNZ的区别

MAX208IDWR

德州仪器

功能相似

ADM237LANZ和MAX208IDWR的区别
