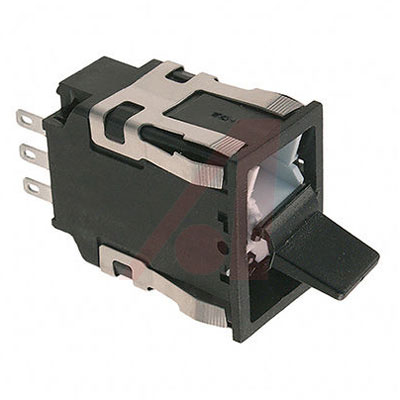

AML23EBA2AC01图片6
AML23EBA2AC01图片7
AML23EBA2AC01图片8
AML23EBA2AC01概述

Rocker Switches DPDT 2Position Unlighted

** AML23 Series Electronic Control Paddle**

The AML series from Honeywell features a wide selection of pushbutton, rocker and toggle switches. They offer not only a wide selection of options such as solid state, electronic and power duty control but also each version offers a number of choices for mounting style, illumination, contact configurations and more. Illuminated versions have easy access to the lamp from the front of the panel for re-lamping, without the need for tools.

AML23EBA2AC01中文资料参数规格
技术参数

额定电压DC 24 V

额定电压AC 125 V

额定电流 3A AC, 2A DC

排数 2

触点类型 DPDT

触点额定电流 3.00 A

封装参数

安装方式 Panel

封装 125

外形尺寸

宽度 28.9 mm

高度 35.6 mm

封装 125

物理参数

颜色 Black

触点材质 Silver

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买AML23EBA2AC01
型号: AML23EBA2AC01
描述:Rocker Switches DPDT 2Position Unlighted
