ADUM3223ARZ-RL7

隔离式精密半桥驱动器 Isolated Precision Half-Bridge Driver

Product Details

The ADuM3223/ADuM4223 are 4 A isolated, half-bridge gate drivers that employ the Analog Devices, Inc.,_ i_Coupler® technology to provide independent and isolated high-side and low-side outputs. The ADuM3223 provides 3000 V rms isolation in the narrow body, 16-lead SOIC package, and the ADuM4223 provides 5000 V rms isolation in the wide body, 16-lead SOIC package. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers.

The ADuM3223/ADuM4223 isolators each provide two independent isolated channels. They operate with an input supply ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems. In comparison to gate drivers employing high voltage level translation methodologies, the ADuM3223/ ADuM4223 offer the benefit of true, galvanic isolation between the input and each output. Each output may be continuously operated up to 537 V peak relative to the input, thereby supporting low-side switching to negative voltages. The differential voltage between the high-side and low-side may be as high as 800 V peak.

As a result, the ADuM3223/ADuM4223 provide reliable control over the switching characteristics of IGBT/MOSFET configurations over a wide range of positive or negative switching voltages.

**Applications**

.

Switching power supplies

.

Isolated IGBT/MOSFET gate drives

.

Industrial inverters

.

Automotive

### Features and Benefits

.

4 A peak output current

.

Working voltage

.

High-side or low-side relative to input: 537 V peak

.

High-side to low-side differential: 800 V peak

.

High frequency operation: 1 MHz maximum

.

3.3 V to 5 V CMOS input logic

.

4.5 V to 18 V output drive

.

UVLO at 2.5 V VDD1

.

ADuM3223A/ADuM4223A UVLO at 4.1 V VDD2

.

ADuM3223B/ADuM4223B UVLO at 7.0 V VDD2

.

ADuM3223C/ADuM4223C UVLO at 11.0 V VDD2

.

Precise timing characteristics

.

54 ns maximum isolator and driver propagation delay

.

5 ns maximum channel-to-channel matching

.

CMOS input logic levels

.

High common-mode transient immunity:>25 kV/μs

.

Enhanced system-level ESD performance per IEC 61000-4-x

.

High junction temperature operation: 125°C

.

Thermal shutdown protection

.

Default low output

.

**Safety and regulatory approvals**

.

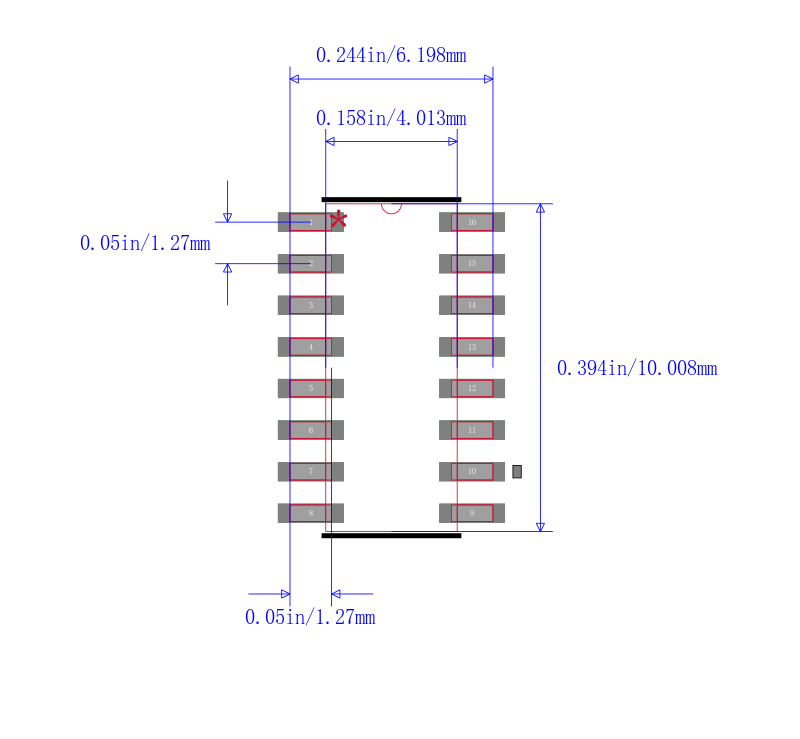

ADuM3223 narrow-body, 16-lead SOIC

.

UL recognition per UL 1577

.

3000 V rms for 1 minute SOIC long package

.

CSA Component Acceptance Notice 5A

.

VDE certificate of conformity

.

DIN V VDE V 0884-10 VDE V 0884-10:2006-12

.

VIORM = 560 V peak

.

Qualified for automotive applications
