隔离，4A双通道栅极驱动器 Isolated, 4 A Dual-Channel Gate Driver

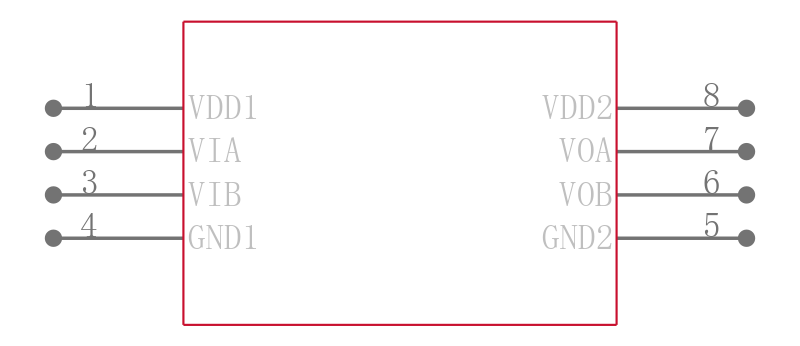

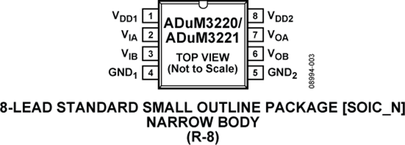

Product Details
The ADuM3220/ADuM3221 are isolated, 4 A dual-channel gate drivers based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers.
The ADuM3220/ADuM3221 provide digital isolation in two independent isolation channels. They have a maximum propagation delay of 60 ns and 5 ns channel-to-channel matching. In comparison to gate drivers that employ high voltage level translation methodologies, the ADuM3220/ADuM3221 offer the benefit of true, galvanic isolation between the input and each output, enabling voltage translation across the isolation barrier. The ADuM3220 has shoot-through protection logic, which prevents both outputs from being on at the same time, whereas the ADuM3221 allows both outputs to be on at the same time. Both parts offer a default output low characteristic as required for gate drive applications.
The ADuM3220/ADuM3221 operate with an input supply voltage ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems. The outputs of the ADuM3220A/ADuM3221A can be operated at supply voltages from 4.5 V to 18 V. The outputs of the ADuM3220B/ADuM3221B can be operated at supply voltages from 7.6 V to 18 V.
The junction temperature of the ADuM3220/ADuM3221 is specified from −40°C to +125°C.
Applications
- .
- Isolated synchronous dc-to-dc converters
- .
- MOSFET/IGBT gate drivers
### Features and Benefits
- .
- 4 A peak output current
- .
- Precise timing characteristics
- .
- 60 ns maximum isolator and driver propagation delay
- .
- 5 ns maximum channel to channel matching
- .
- High junction temperature operation: 125°C
- .
- 3.3 V to 5 V input logic
- .
- 7.6 V to 18 V output drive
- .
- Undervoltage lockout UVLO at 7.0 V VDD2
- .
- Thermal shutdown protection at >150°C
- .
- Default low output
- .
- High frequency operation: dc to 1 MHz
- .
- CMOS input logic levels\
- .
- High common-mode transient immunity: 25 kV/μs
- .
- Automotive versions qualified per AEC-Q100
- .
- See data sheet for additional features
