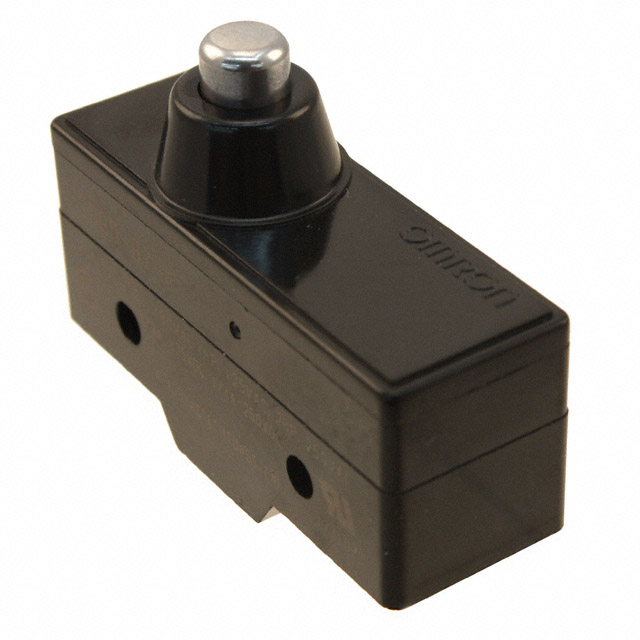

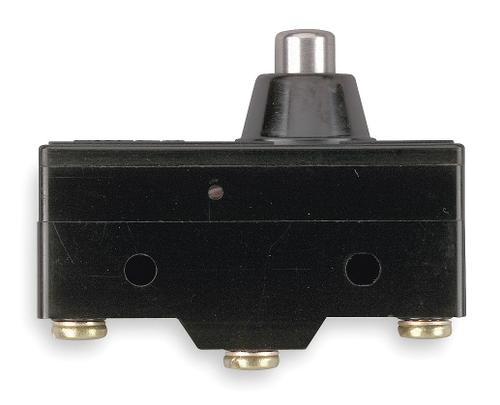

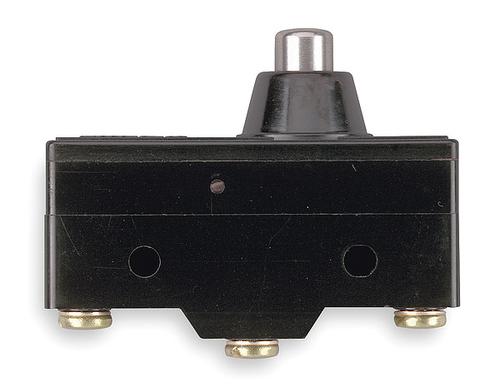

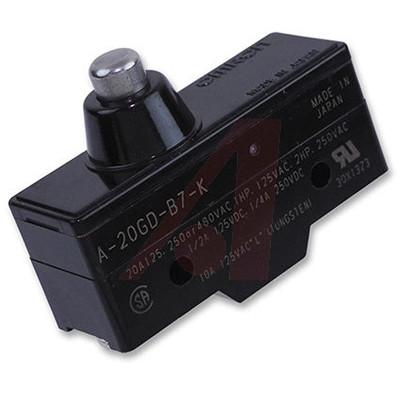

A-20GD-B7-K

OMRON INDUSTRIAL AUTOMATION  A-20GD-B7-K  微型开关, 摁入式

**Ratings:** non-inductive, resistive; 20 A @ 125/250 VAC, 15 A @ 500 VAC, 0.5 A @ 125 VDC, 0.25 A @ 250 VDC. Screw terminals. **Body Size:** 49.2 × 17.5 × 24.2 mm 1.94" × 0.69" × 0.95". UL Recognized and CSA Approved.

**Features

**

* High-Capacity SPDT Switch Capable of Handling 20 Amp Loads with Large Inrush Currents**

**

* Switches Loads Such as Motors, Halogen Lamps, and Solenoids Directly**

**

* Same Shape as Z-Series Except Pin Plunger Position, Yet Endures Inrush Currents as Large as 75 Amps
