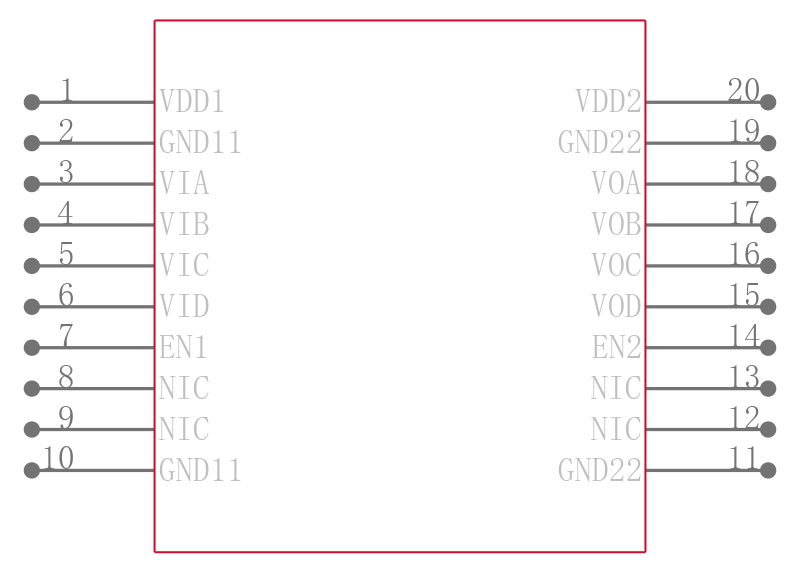

ADUM1445ARSZ

Digital Isolator CMOS 4CH 2Mbps 20Pin SSOP Tube

Product Details

The ADUM1445 is a micropower, quad-channel digital isolator which has a default low and 4/1 directionality based on the Analog Devices, Inc., iCoupler® technology, Dual-channel products available. Combining high speed, complementary metal oxide semiconductor CMOS and monolithic air core transformer technologies, these isolation components provide outstanding performance characteristics superior to the alternatives, such as optocoupler devices, while requiring the lowest power of any available isolation product. The ENX signals can be used to disable the internal refresh, which lowers the total quiescent current to less than 1 µA.

The ADuM1440/ADuM1441/ADuM1442/ADuM1445/ ADuM1446/ADuM1447 family of quad 2.5 kV digital isolation devices are packaged in a small 16-lead QSOP and 20-lead SSOP. While most 4-channel isolators come in 16-lead wide SOIC packages, the ADuM1440/ ADuM1441/ADuM1442/ADuM1445/ADuM1446/ADuM1447 frees almost 70% of board space and yet can still withstand high isolation voltages and meet regulatory requirements, such as UL and CSA standards pending. In addition to the space savings, the ADuM1440/ADuM1441/ADuM1442/ADuM1445/ ADuM1446/ADuM1447 operates with supplies as low as 2.25 V.

Despite the low power consumption, all models of the ADuM1440/ ADuM1441/ADuM1442/ADuM1445/ADuM1446/ADuM1447 provide low, pulse width distortion <8 ns. In addition, every model has an input glitch filter to protect against extraneous noise disturbances.

**APPLICATIONS**

.

General-purpose, low power multichannel isolation

.

1 MHz, low power peripheral interface SPI

.

4 mA to 20 mA loop process controls

### Features and Benefits

.

Ultralow power operation

3.3 V operation typical

5.6 µA per channel quiescent current, refresh enabled

0.3 µA per channel quiescent current, refresh disabled

148 µA/Mbps per channel typical dynamic current

.

2.5 V operation typical

3.4 µA per channel quiescent current, refresh enabled

0.1 µA per channel quiescent current, refresh disabled

117 µA/Mbps per channel typical dynamic current

.

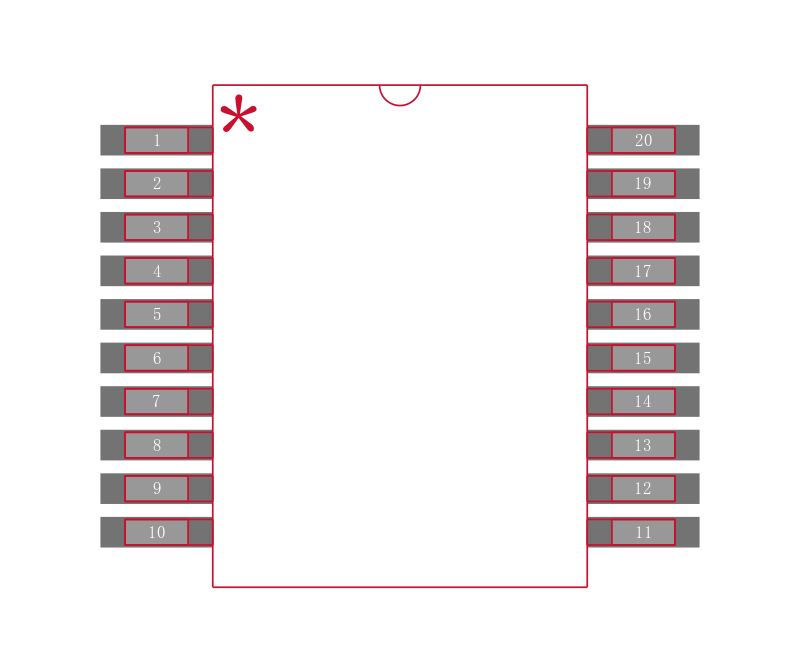

Small, 16-lead QSOP and

20-lead SSOP

.

Bidirectional communication

.

Up to 2 Mbps data rate NRZ

.

High temperature operation: 125°C

.

High common-mode transient immunity: >25 kV/µs

.

Dual-channel products available

.

See datasheet for additional features
