ADM560JRSZ-REEL

超低功耗+ 3.3V ， RS - 232笔记本电脑的串口驱动器/接收器 Ultralow Power +3.3 V, RS-232 Notebook PC Serial Port Drivers/Receivers

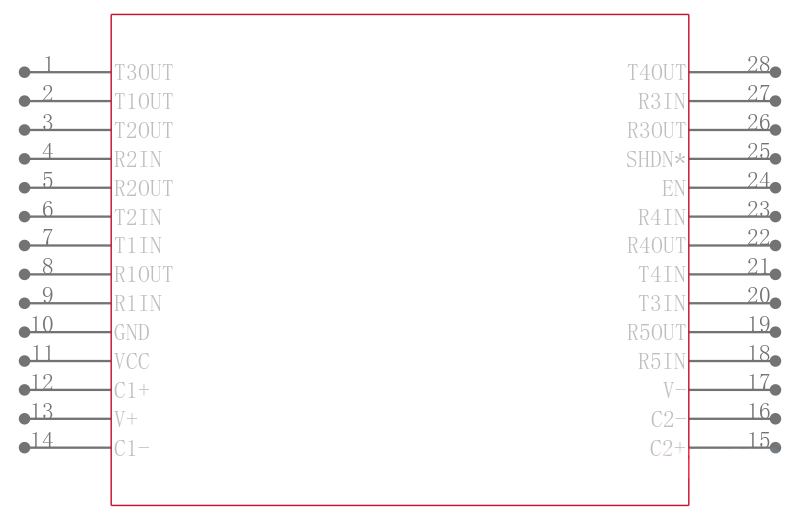

GENERAL DESCRIPTION

The ADM560/ADM561 are four driver/five receiver interface devices designed to meet the EIA-232 standard and operate with a single +3.3 V power supply. The devices feature an on-board dc-to-dc converter, eliminating the need for dual ±5 V power supplies. This dc-to-dc converter contains a voltage doubler and voltage inverter, both of which internally generate ±6.6 V from the input +3.3 V power supply.

FEATURES

RS-232 compatible

Operates with 3 V or 5 V logic

Ultralow power CMOS: 1.3 mA operation

Low power shutdown: 0.2 μA

Suitable for serial port mice

116 kbps data rate

1 μF charge pump capacitors

Single +3 V to +3.6 V power supply

Two receivers active in shutdown ADM560

APPLICATIONS

Notebook computers

Peripherals

Modems

Printers

Battery-operated equipment
