ADUM240E1BRWZ

数字隔离器 IC Robust Quad ISO 4:0 ch

Product Details

The ADuM240D / ADuM240E / ADuM241D / ADuM241E / ADuM242D / ADuM242E are quad-channel digital isolators based on  iCoupler® technology. Combining high speed, complementary metal-oxide semiconductor CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices and other integrated couplers. The maximum propagation delay is 13 ns with a pulse width distortion of less than 3 ns at 5 V operation. Channel matching is tight at 3.0 ns maximum.

The ADuM240D / ADuM240E / ADuM241D / ADuM241E / ADuM242D / ADuM242E data channels are independent and are available in a variety of configurations with a withstand voltage rating of 5.0 kV rms see the Ordering Guide. The devices operate with the supply voltage on either side ranging from 1.8 V to 5 V, providing compatibility with lower voltage across the isolation barrier.

Unlike other optocoupler alternatives, dc correctness is ensured in the absence of input logic transitions. Two different fail-safe options are available by which the outputs transition to a predetermined state when the input power supply is not applied or the inputs are disabled. The ADuM240E1 / ADuM241E1 /  ADuM242E1 are pin compatible with the ADuM2400 / ADuM2401 / ADuM2402.

Applications

.

General-purpose multichannel isolation

.

Serial peripheral interface SPI/data converter isolation

.

Industrial field bus isolation

### Features and Benefits

.

High common-mode transient immunity: 100 kV/μs

.

High robustness to radiated and conducted noise

.

Low propagation delay

.

13 ns maximum for 5 V operation

.

15 ns maximum for 1.8 V operation

.

150 Mbps maximum guaranteed data rate

.

Low dynamic power consumption

.

1.8 V to 5 V level translation

.

High temperature operation: 125°C

.

Fail-safe high or low options

.

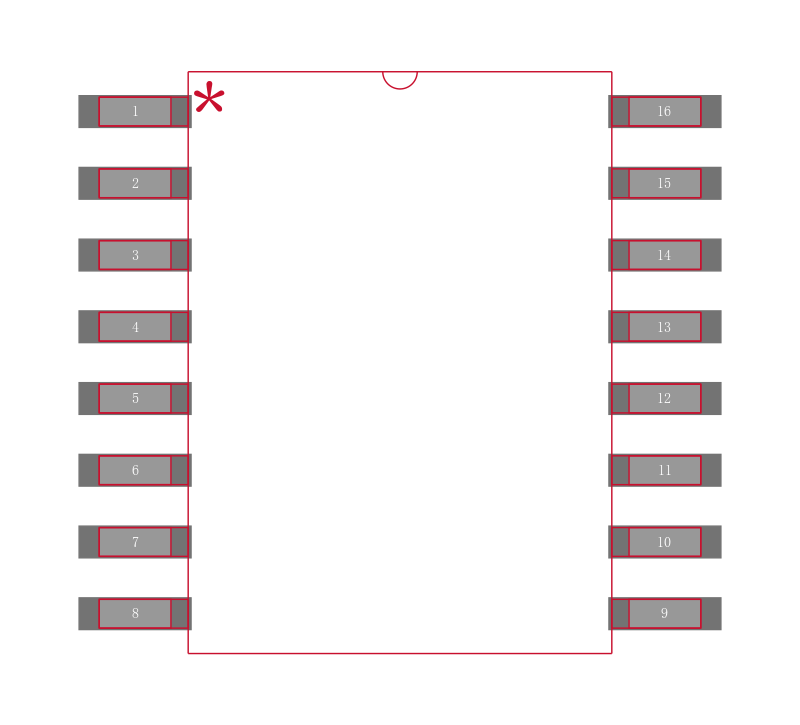

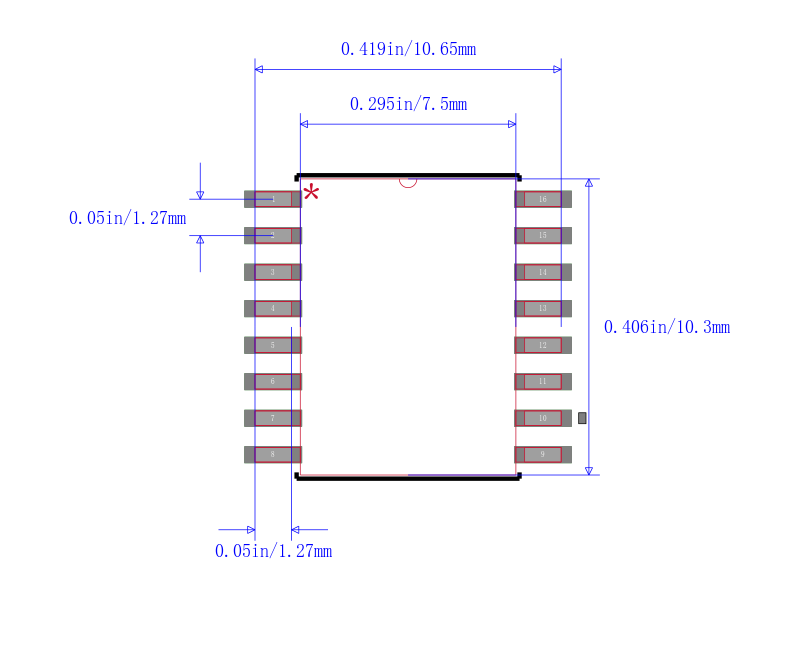

16-lead, RoHS compliant, SOIC package

.

Qualified for automotive applications

.

See data sheet for additional features
