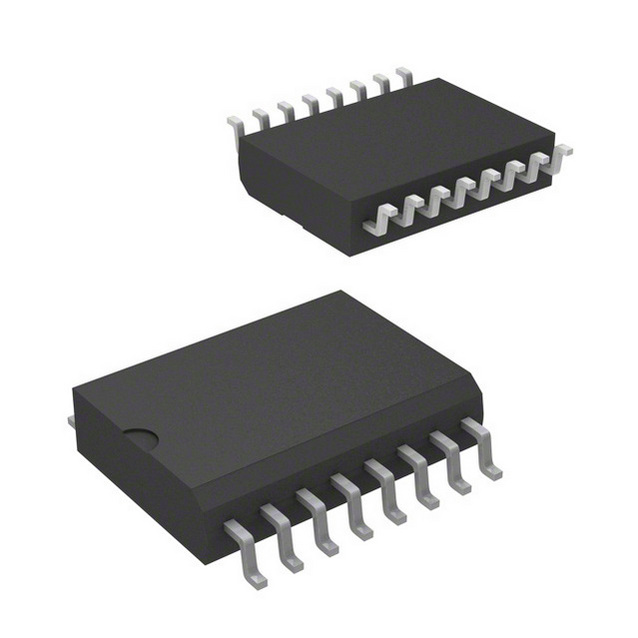

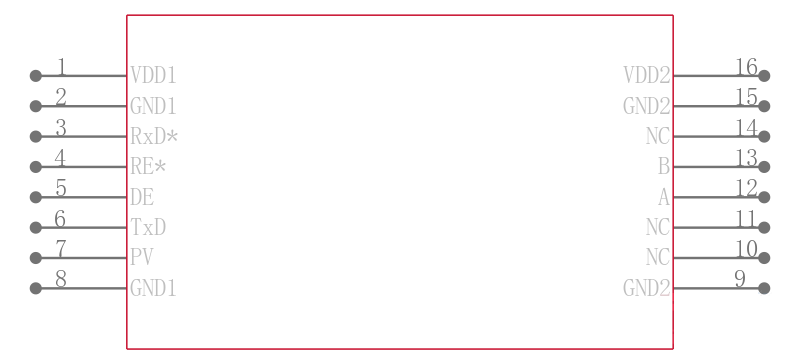

ADM2483BRW-REEL

半双工的iCoupler -R隔离RS- 485收发器 Half-Duplex iCoupler-R Isolated RS-485 Transceiver

GENERAL DESCRIPTION

The ADM2483differential bus transceiver is an integrated, galvanically isolated component designed for bidirectional data communication on balanced, multipoint bus transmission lines.

It complies with ANSI EIA/TIA-485-A and ISO 8482: 1987E. Using Analog Devices’ iCoupler technology, the ADM2483 combines a 3-channel isolator, a three-state differential line driver, and a differential input receiver into a single package. The logic side of the device is powered with either a 5 V or 3 V supply, and the bus side uses a 5 V supply only.

FEATURES

RS-485 transceiver with electrical data isolation

Complies with ANSI TIA/EIA RS-485-A and ISO 8482: 1987E

500 kbps data rate

Slew rate-limited driver outputs

Low power operation: 2.5 mA max

Suitable for 5 V or 3 V operations VDD1

High common-mode transient immunity: >25 kV/μs

True fail-safe receiver inputs

Chatter-free power-up/power-down protection

256 nodes on bus

Thermal shutdown protection

Safety and regulatory approvals

  UL recognition: 2500 V rms for 1 minute per UL 1577

  CSA Component Acceptance Notice #5A

     IEC 609501 800 V rms basic, 400 V rms reinforced

  VDE Certificate of Conformity

    DIN V VDE V 0884-10 VDE V 0884-10: 2006-12

VIORM= 560 V peak

Operating temperature range: −40°C to +85°C

APPLICATIONS

Low power RS-485/RS-422 networks

Isolated interfaces

Building control networks

Multipoint data transmission systems
