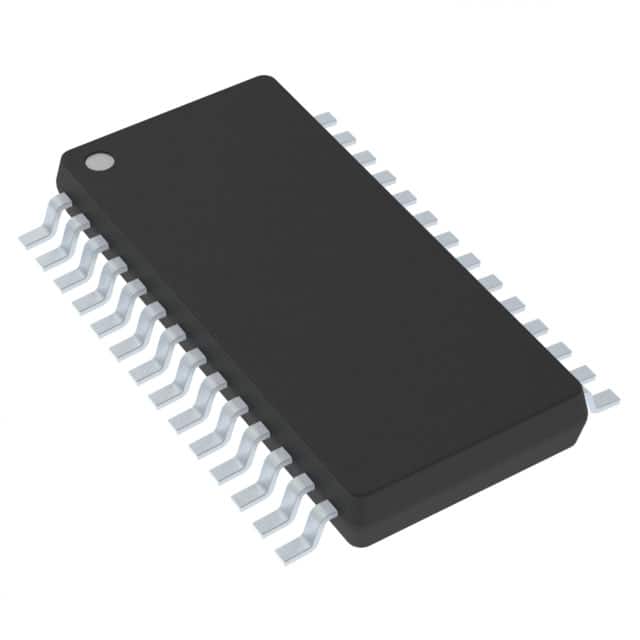

AD8016AREZ-REEL7图片1

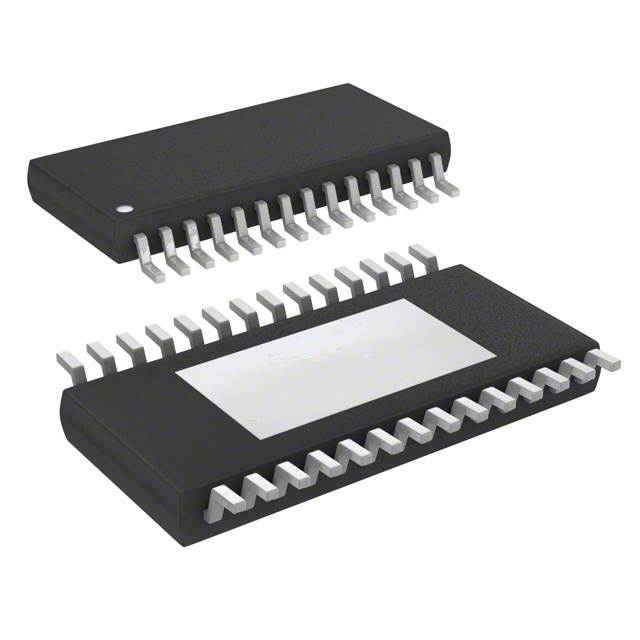

AD8016AREZ-REEL7图片2

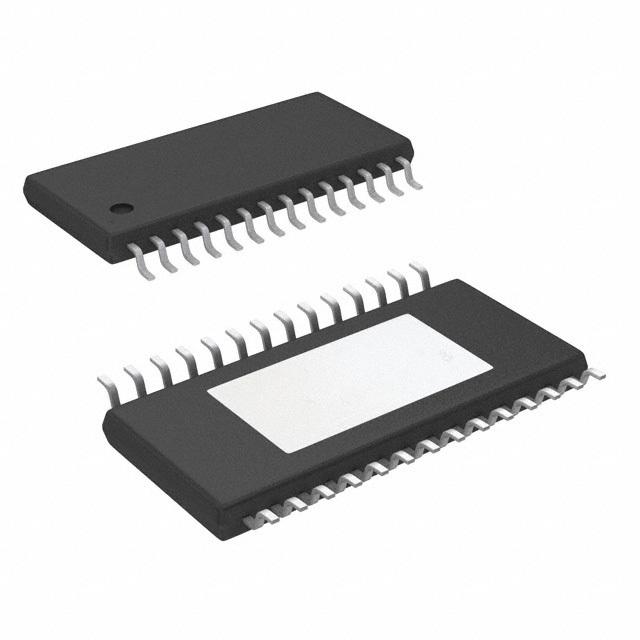

AD8016AREZ-REEL7图片3
AD8016AREZ-REEL7图片4
AD8016AREZ-REEL7图片5
AD8016AREZ-REEL7图片6
AD8016AREZ-REEL7图片7
AD8016AREZ-REEL7概述

ADSL Driver Dual 28Pin TSSOP EP T/R

Product Details

The AD8016 is a 2nd generation DSL line driver capable of delivering full rate ADSL from the Central Office on a cool 1.5 W total power dissipation.

With the addition of a flexible Standby functionality, and packaged in a 20-Lead PSOP, a 24-Lead SOIC, and a 28-Lead TSSOP package, the AD8016 is optimized for DSL line driving at both ends of the line. Novel circuit design and a new ±12 V, high speed bipolar process enable each amplifier in the dual AD8016 to deliver 20 V pk-to-pk output voltage and more than 400 mA typical output current.

The combination of a breakthrough in two stage current gain and high speed bipolar process technology means that the AD8016 can deliver low distortion output voltages to within 2 V of the power supply rail, setting the standard in high efficiency.

### Features and Benefits

.
xDSL Line Driver that Features Full ADSL CO CentralOffice Performance on ±12 V Supplies
.
Low Power Operation

±5 V to ±12 V Voltage Supply

12.5 mA/Amp Typ Total Supply Current

Power Reduced Keep Alive

Current of 4.5 mA/Amp

.
High Output Voltage and Current Drive

IOUT = 600 mA

40 V p-p Differential Output Voltage

RL = 50 Ω,VS = ±12 V

.
Low Single-Tone Distortion

–75 dBc @ 1 MHz SFDR,

RL = 100 Ω, VO = 2 V p-p

MTPR = –75 dBc, 26 kHz to 1.1 MHz,

ZLINE = 100 Ω,

PLINE = 20.4 dBm

.
High Speed

78 MHz Bandwidth –3 dB, G = +5

40 MHz Gain Flatness

1000 V/µs Slew Rates

AD8016AREZ-REEL7中文资料参数规格
技术参数

供电电流 26.4 mA

通道数 2

耗散功率 1.4 W

共模抑制比 66.0 dB

输入电容 2.00 pF

输入阻抗 400 kΩ

工作温度Max 85 ℃

工作温度Min -40 ℃

3dB带宽 380 MHz

耗散功率Max 1400 mW

共模抑制比Min 58 dB

电源电压 3V ~ 13V

封装参数

安装方式 Surface Mount

引脚数 28

封装 TSSOP-28

外形尺寸

长度 9.7 mm

宽度 4.4 mm

高度 0.9 mm

封装 TSSOP-28

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

军工级 No

海关信息

ECCN代码 EAR99

数据手册

AD8016AREZ-REEL7引脚图与封装图
AD8016AREZ-REEL7引脚图
AD8016AREZ-REEL7封装图
AD8016AREZ-REEL7电路图
AD8016AREZ-REEL7封装焊盘图
在线购买AD8016AREZ-REEL7
型号: AD8016AREZ-REEL7
制造商: ADI 亚德诺
描述:ADSL Driver Dual 28Pin TSSOP EP T/R
替代型号AD8016AREZ-REEL7
型号/品牌 代替类型 替代型号对比

AD8016AREZ-REEL7

ADI 亚德诺

当前型号

当前型号

AD8016AREZ

亚德诺

完全替代

AD8016AREZ-REEL7和AD8016AREZ的区别

AD8016ARB

亚德诺

类似代替

AD8016AREZ-REEL7和AD8016ARB的区别

AD8016ARBZ

亚德诺

功能相似

AD8016AREZ-REEL7和AD8016ARBZ的区别
