开关
Pushbutton Switches, 4.91 N 500 gf Operating Force
Complete line of illuminated and non-illuminated pushbuttons, pilot lights, selector switches, key-type selector switches, E-Stop switches, buzzers and accessories. Available through your local Allied sales office.
24 VAC/VDC transformer type.
* CE Approved, UL and CSA Approved
* IP65 Rated Industrial Devices
* Two-Piece Snap-Together Construction
* No Tools Required Installation
得捷:
SWITCH PUSHBUTTON DPDT 5A 125V
立创商城:
开关
艾睿:
Switch Push Button N.O./N.C. DPDT Round Button 5A 250VAC 30VDC Momentary Contact Panel Mount Solder
Allied Electronics:

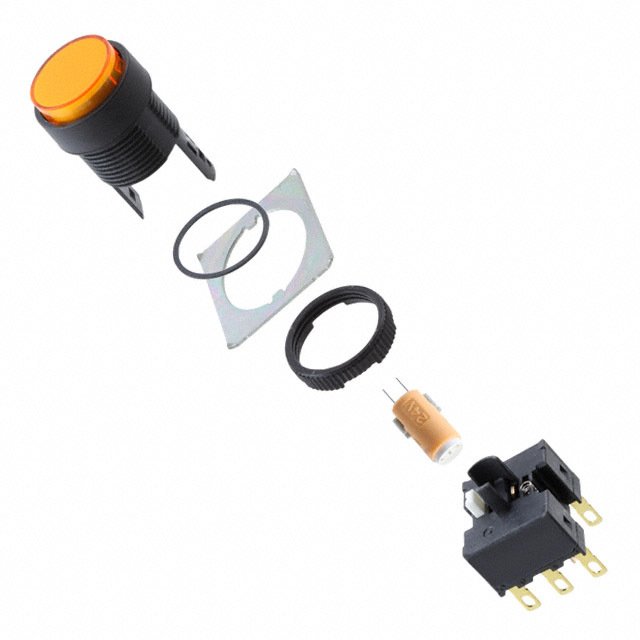

Switch, Pushbutton, Illuminated, DPDT, LED, 24V, ROUND EXTENDED, YELLOW, Momentary
Chip1Stop:
Switch Push Button DPDT Round Button 5A 250VAC 30VDC Momentary Contact Solder Panel Mount
额定电压DC 24.0 V
接触器类型 Button
额定电压AC 125 V
额定电流 5A AC
绝缘电阻 ≥100 MΩ
排数 2
方向 Vertical
触点类型 DPDT
触点额定电流 10.0 mA
额定电流Max 5A @125VAC
工作温度Max 55 ℃
工作温度Min -10 ℃
额定电压 125 VAC
安装方式 Solder Lug, Panel
封装 -
长度 18 mm
宽度 18 mm
高度 30.4 mm
直径 18.0 mm
封装 -
触点材质 Silver
工作温度 -10℃ ~ 55℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
