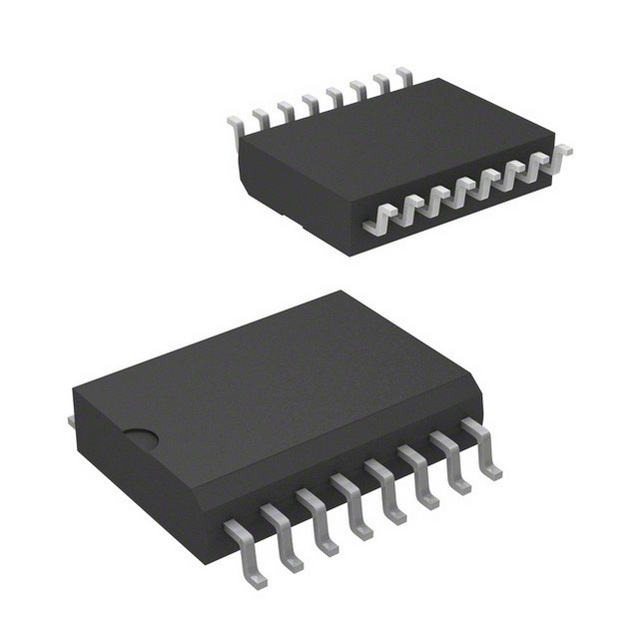

ADUM5403WCRWZ图片1
ADUM5403WCRWZ图片2
ADUM5403WCRWZ图片3
ADUM5403WCRWZ图片4
ADUM5403WCRWZ图片5
ADUM5403WCRWZ图片6
ADUM5403WCRWZ概述

四通道隔离器,集成DC- DC转换器 Quad-Channel Isolators with Integrated DC-to-DC Converter

GENERAL DESCRIPTION

The ADuM5401W/ADuM5402W/ADuM5403W devices are quad-channel digital isolators with isoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler® technology, the dc-to-dc converter provides up to 500 mW of regulated, isolated power at 5.0 V These devices eliminate the need for a separate, isolated dc-to-dc converter in low power, isolated designs. The iCoupler chipscale transformer technology is used to isolate the logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.

FEATURES

isoPower integrated, isolated dc-to-dc converter

Qualified for automotive applications

Regulated 5 V or 3.3 V output

Up to 500 mW output power

Quad dc-to-25 Mbps NRZ signal isolation channels

16-lead SOIC package with 7.6 mm creepage

High temperature operation: 105°C

High common-mode transient immunity: >25 kV/µs

Safety and regulatory approvals

   UL recognition: 2500 V rms for 1 minute per UL 1577

   CSA Component Acceptance Notice #5A

   VDE certificate of conformity

    DIN EN 69747-5-2 VDE 0884 Teil 2:2003-1

    VIORM = 565 V peak

ADUM5403WCRWZ中文资料参数规格
技术参数

通道数 4

耗散功率 500 mW

隔离电压 2500 Vrms

下降时间Max 2.5 ns

上升时间Max 2.5 ns

工作温度Max 105 ℃

工作温度Min -40 ℃

耗散功率Max 500 mW

电源电压 3.3V, 5V

封装参数

安装方式 Surface Mount

引脚数 16

封装 SOIC-16

外形尺寸

封装 SOIC-16

其他

产品生命周期 Active

包装方式 Tube

制造应用 Automotive, Hybrid Electric Vehicles

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

ADUM5403WCRWZ引脚图与封装图

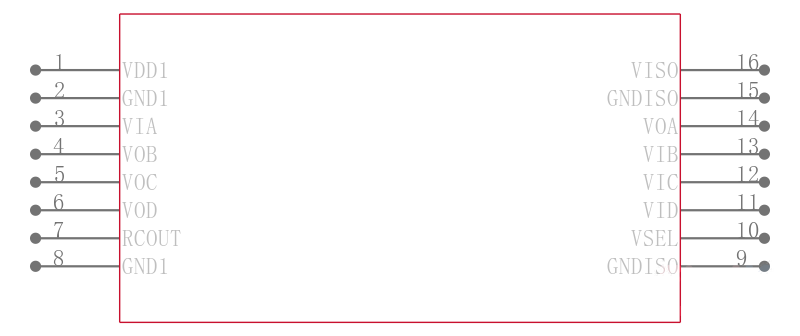

ADUM5403WCRWZ引脚图
ADUM5403WCRWZ封装图
ADUM5403WCRWZ电路图
ADUM5403WCRWZ封装焊盘图
在线购买ADUM5403WCRWZ
型号: ADUM5403WCRWZ
制造商: ADI 亚德诺
描述:四通道隔离器,集成DC- DC转换器 Quad-Channel Isolators with Integrated DC-to-DC Converter
