A22L-GG-24A-10M

A22L-GG-24A-10M图片1

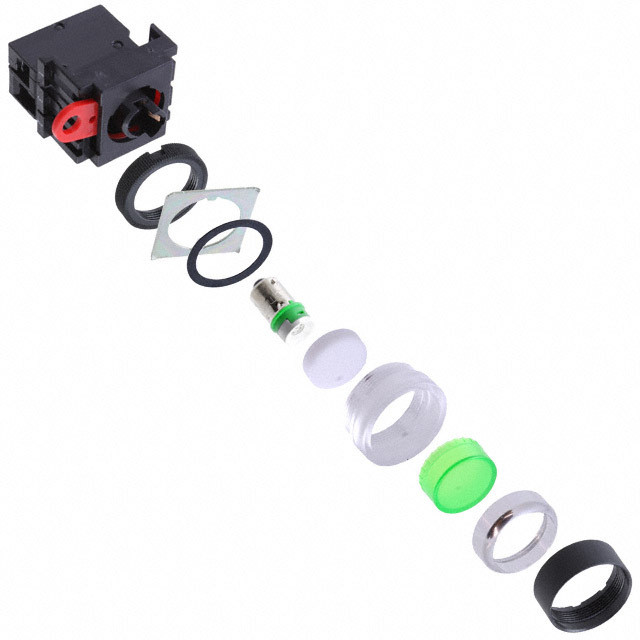

A22L-GG-24A-10M图片2

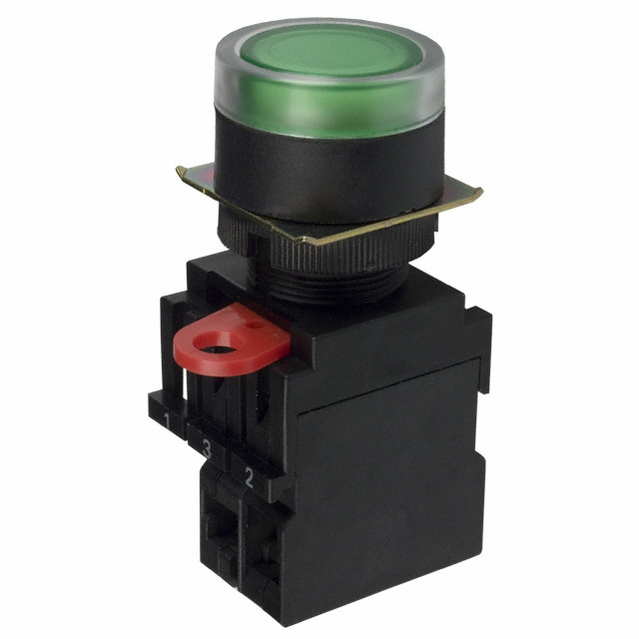

A22L-GG-24A-10M图片3
A22L-GG-24A-10M图片4
A22L-GG-24A-10M概述

Switch Push Button N.O. SPST Flush Round Button 10A 440VAC 380VDC Momentary Contact Screw Panel Mount/Screw Mount

**22mm Pushbuttons A22**

Pushbutton switches for installlation into 22mm or 25mm panel cut outs. Use optional 25mm diameter ring to installl in 25mm diameter panel cutouts


得捷:
SWITCH PUSH SPST-NO 10A 110V


贸泽:
Illuminated Pushbutton Switches SPST-NO MO RN 24V GN IP65 LED full-guard


艾睿:
Switch Push Button N.O. SPST Flush Round Button 10A 440VAC 380VDC Momentary Contact Screw Panel Mount


Allied Electronics:
Pushbutton, Illuminated, Green, 24V SPST, NO, Momentary


Chip1Stop:
Switch Push Button N.O. SPST Flush Round Button 10A 440VAC 380VDC Momentary Contact Screw Panel Mount/Screw Mount


Verical:
Switch Push Button N.O. SPST Flush Round Button 10A 440VAC 380VDC Momentary Contact Screw Panel Mount


A22L-GG-24A-10M中文资料参数规格
技术参数

额定电压DC 24 V

接触器类型 Button

额定电压AC 110 V

额定电流 10 A

方向 Vertical

触点类型 SPST-NO

触点额定电流 10.0 mA

额定电流Max 10 A

工作温度Max 55 ℃

工作温度Min -20 ℃

额定电压 110 VAC

封装参数

安装方式 Panel

外形尺寸

长度 34 mm

宽度 30 mm

高度 73.7 mm

物理参数

工作温度 -20℃ ~ 55℃

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买A22L-GG-24A-10M
型号: A22L-GG-24A-10M
制造商: Omron 欧姆龙
描述:Switch Push Button N.O. SPST Flush Round Button 10A 440VAC 380VDC Momentary Contact Screw Panel Mount/Screw Mount
