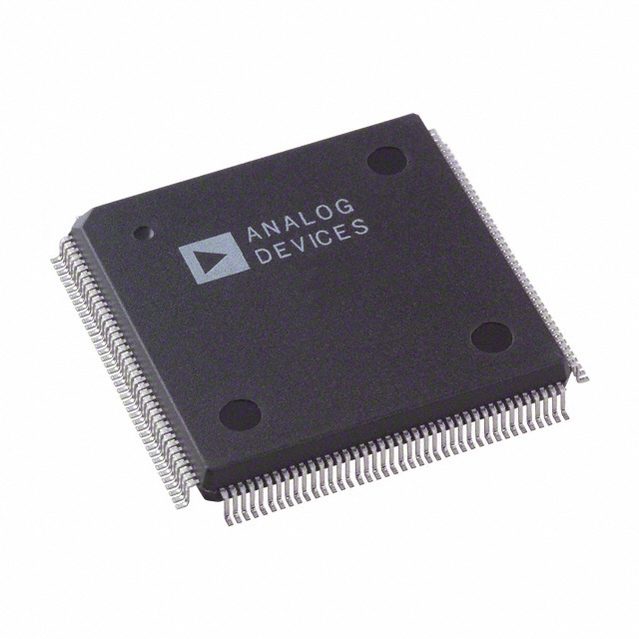

AD9887AKS-170

用于平板显示器双接口 Dual Interface for Flat Panel Displays

GENERAL DESCRIPTION

The AD9887A offers designers the flexibility of an analog interface and digital visual interface DVI receiver integrated on a single chip. Also included is support for High Bandwidth Digital Content Protection HDCP. The AD9887A is software and pin-to-pin compatible with the AD9887.

FEATURES

Analog Interface

170 MSPS Maximum Conversion Rate

Programmable Analog Bandwidth

0.5 V to 1.0 V Analog Input Range

500 ps p-p PLL Clock Jitter at 170 MSPS

3.3 V Power Supply

Full Sync Processing

Midscale Clamping

4:2:2 Output Format Mode

Digital Interface

DVI 1.0 Compatible Interface

170 MHz Operation 2 Pixel/Clock Mode

High Skew Tolerance of 1 Full Input Clock

Sync Detect for “Hot Plugging”

Supports High Bandwidth Digital Content Protection
