ADUM1300BRW-RL

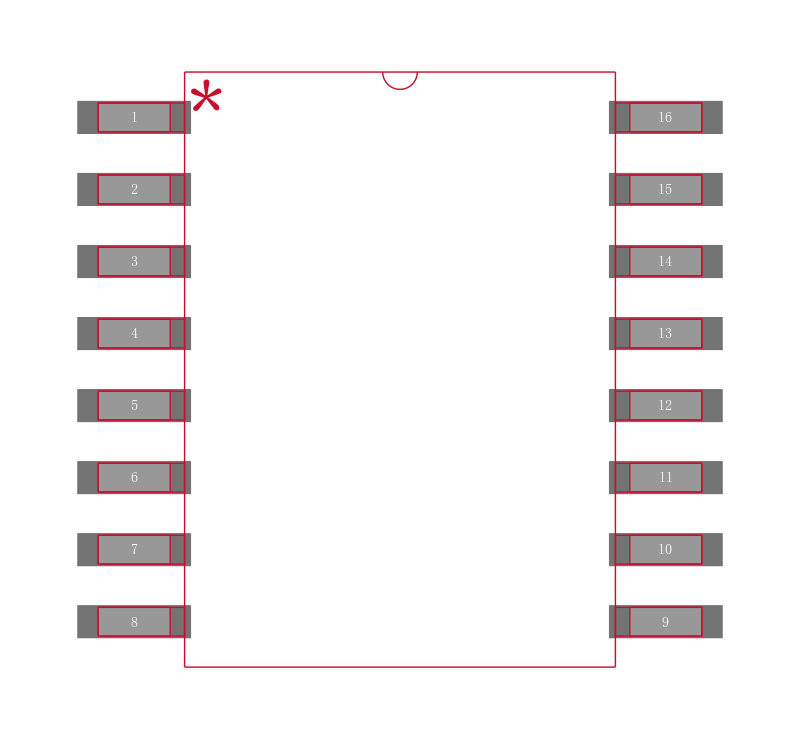

Digital Isolator Logic 3CH 10Mbps 16Pin SOIC W T/R

Product Details

The ADuM130x are triple-channel digital isolators based on the Analog Devices, Inc., _i_Coupler® technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives, such as optocouplers.

By avoiding the use of LEDs and photodiodes, _i_Coupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple _i_Coupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with these _i_Coupler products. Furthermore, _i_Coupler devices consume one-tenth to one-sixth of the power of optocouplers at comparable signal data rates.

The ADuM130x isolators provide three independent isolation channels in a variety of channel configurations and data rates see the Ordering Guide in the data sheet. Both models operate with the supply voltage on either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM130x provide low pulse width distortion <2 ns for CRW grade and tight channel-to-channel matching <2 ns for CRW grade. Unlike other optocoupler alternatives, the ADuM130x isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and when power is not applied to one of the supplies.

**Applications**

.

General-purpose multichannel isolation

.

SPI interface/data converter isolation

.

RS-232/RS-422/RS-485 transceivers

.

Industrial field bus isolation

.

Automotive systems

### Features and Benefits

.

Automotive versions qualified per AEC-Q100

.

Low power operation

.

Bidirectional communication

.

3 V/5 V level translation

.

High temperature operation: 125°C

.

High data rate: dc to 90 Mbps NRZ

.

Precise timing characteristics

.

High common-mode transient immunity: >25 kV/μs

.

See data sheet for additional features
