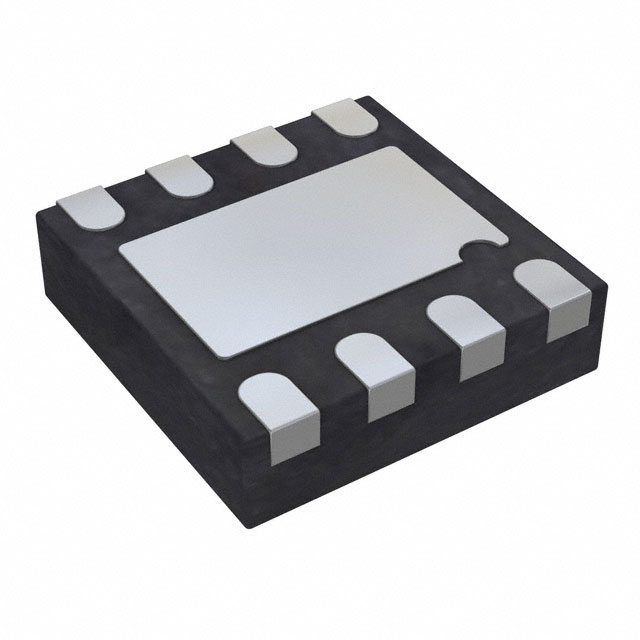

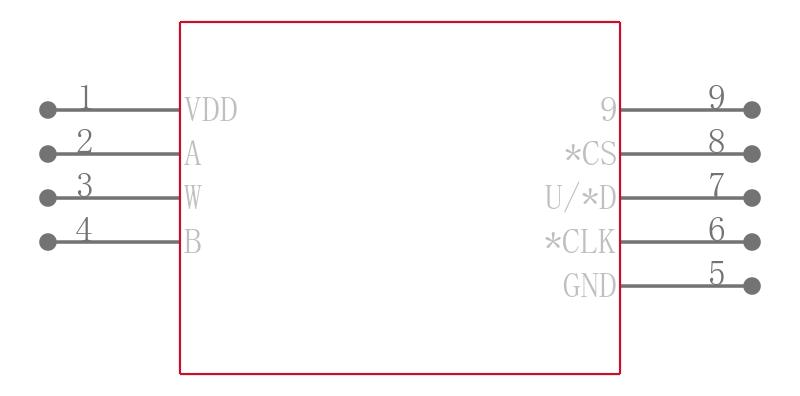

AD5113BCPZ80-RL7

Digital Potentiometer 64POS 80KΩ Single 8Pin LFCSP EP T/R

Product Details

The AD5113 provides a nonvolatile solution for 64-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins. The low resistor tolerance, low nominal temperature coefficient, and high bandwidth simplify open-loop applications, as well as tolerance matching applications.

The new low wiper resistance feature minimizes the wiper resistance in the extremes of the resistor array to only 45 Ω typical.

A simple 3-wire up/down interface allows manual switching or high speed digital control with clock rates up to 50 MHz.

The AD5113 is available in a 2 mm × 2 mm LFCSP package. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.

**Applications**

.

Mechanical potentiometer replacement

.

Portable electronics level adjustment

.

Audio volume control

.

Low resolution DAC

.

LCD panel brightness and contrast control

.

Programmable voltage to current conversion

.

Programmable filters, delays, time constants

.

Feedback resistor programmable power supply

.

Sensor calibration

### Features and Benefits

.

Nominal resistor tolerance error:

±8% maximum

.

Wiper current: ±6 mA

.

Rheostat mode temperature coefficient: 35 ppm/°C

.

Low power consumption: 2.5 μA max @ 2.7 V and 125°C

.

Wide bandwidth: 4 MHz 5 kΩ option

.

Power-on EEPROM refresh time

< 50 μs

.

50-year typical data retention at 125°C

.

1 million write cycles

.

2.3 V to 5.5 V supply operation

.

Chip select enable multiple device operation

.

Wide operating temperature:

−40°C to +125°C

.

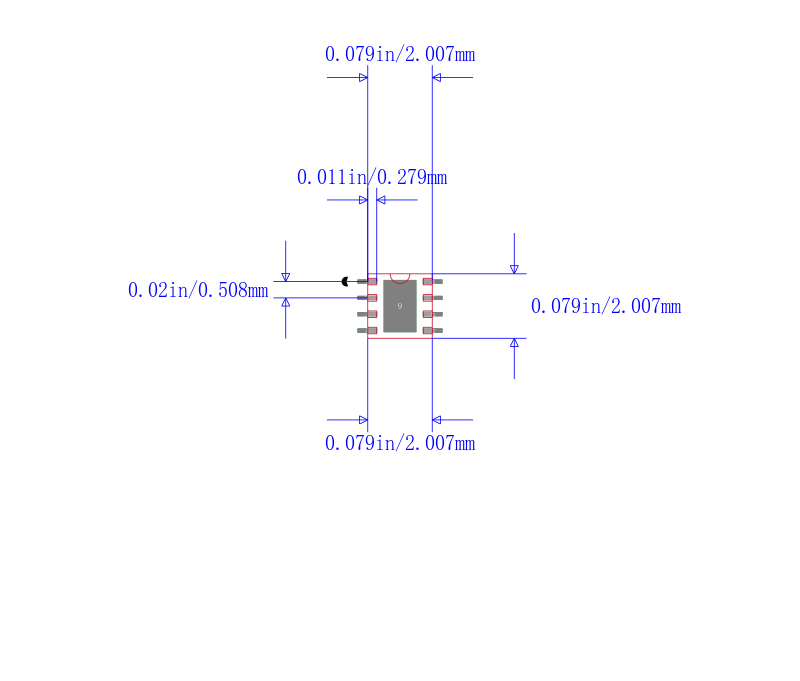

Thin, 2 mm × 2 mm × 0.55 mm,

8-lead LFCSP package
