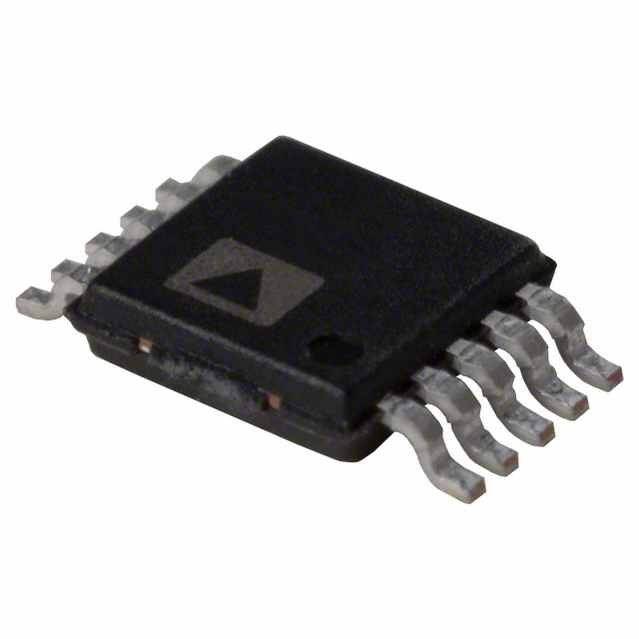

非易失, I2C兼容256位,数字电位器 Nonvolatile, I2C-Compatible 256-Position, Digital Potentiometer
50k 欧姆 1 电路 256 抽头 I²C 接口 10-MSOP
得捷:
IC DGTL POT 50KOHM 256TAP 10MSOP
立创商城:
AD5259BRMZ50-R7
艾睿:
Perfect for amplifiers this AD5259BRMZ50-R7 digital potentiometer manufactured from Analog Devices are used to change resistance. This digital potentiometer has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device uses analog and digital power.
安富利:
Digital Potentiometer 256POS 50KOhm Single 10-Pin MSOP T/R
Chip1Stop:
Digital Potentiometer 256POS 50kOhm Single Automotive 10-Pin MSOP T/R
Verical:
Digital Potentiometer 50kOhm 256POS Non-Volatile Automotive 10-Pin MSOP T/R
罗切斯特:
AD5259 - Non-Volatile, I2C-Compatible 256-Position, Digital Potentiometer
容差 ±30 %
供电电流 0.0001 mA
电路数 1
针脚数 256
时钟频率 400kHz max
电阻 50 kΩ
静态电流 100 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
宽度 3 mm
高度 0.85 mm
封装 MSOP-10
工作温度 -40℃ ~ 85℃
温度系数 ±500 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5259BRMZ50-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5259BRMZ50 亚德诺 | 类似代替 | AD5259BRMZ50-R7和AD5259BRMZ50的区别 |
