模数转换器 8 位, ### 模拟至数字转换器 - Texas Instruments
模数转换器 8 位,<=10MSPS,Texas Instruments
### 模拟至数字转换器 - Texas Instruments
得捷:
IC ADC 8BIT SAR 20DIP
欧时:

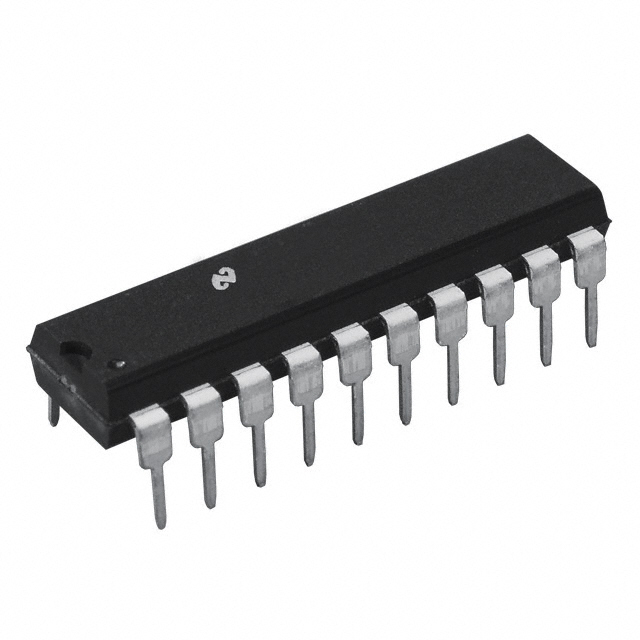

Texas Instruments ADC0838CCN/NOPB 8 位 ADC, 差分输入, 串行(SPI/Microwire)接口, 20引脚 MDIP封装
贸泽:
模数转换器 - ADC 8B Serial I/O ADC
艾睿:
Using a transducer to convert real world physical signals into analog signals, this ADC0838CCN/NOPB ADC from Texas Instruments converts those analog signals into digital data that a computer can read. This device is based on SAR architecture. This device&s;s digital interface is serial microwire. Its maximum power dissipation is 800 mW. It has a pseudo-differential and differential input signal. This ADC has a resolution of 8bit. This ADC has an input voltage of 5 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
ADC Single SAR 31ksps 8-bit Serial 20-Pin PDIP Rail
Chip1Stop:
ADC Single SAR 31ksps 8-bit Serial 20-Pin PDIP Rail
TME:
A/D converter; Channels:8; 8bit; 31ksps; 4.5÷6.3V; DIP20
Verical:
Octal Channel Single ADC SAR 31.25ksps 8-bit Serial 20-Pin PDIP Tube
DeviceMart:
IC ADC 8BIT SERIAL I/O 20-DIP
Win Source:
IC ADC 8BIT SERIAL I/O 20-DIP
数字逻辑电平 SAR
电源电压DC 4.50V min
工作电压 4.5V ~ 6.3V
供电电流 900 µA
电路数 1
通道数 8
位数 8
耗散功率 15 mW
采样率 31.0 kHz
功耗 15 mW
模数转换数ADC 1
输入数 4, 8
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 800 mW
输入通道数 8
输入电压 5 V
安装方式 Through Hole
引脚数 20
封装 PDIP-20

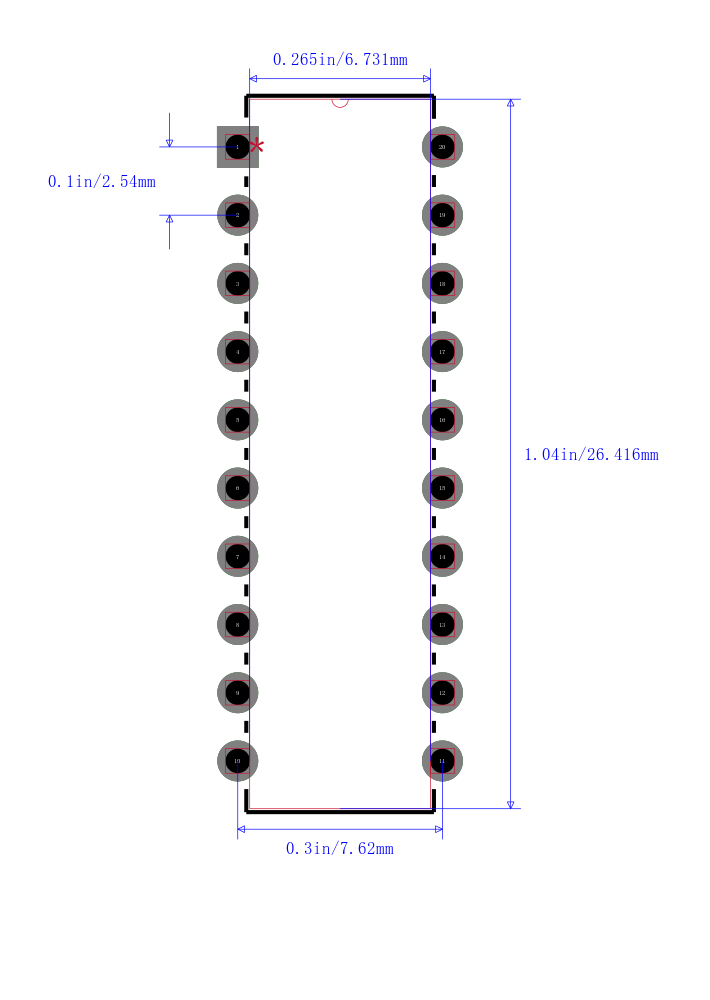

长度 26.42 mm
宽度 6.6 mm
高度 3.3 mm
封装 PDIP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADC0838CCN/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
TLC0838CN 德州仪器 | 类似代替 | ADC0838CCN/NOPB和TLC0838CN的区别 |
TLC0838IN 德州仪器 | 类似代替 | ADC0838CCN/NOPB和TLC0838IN的区别 |
ADC0838CCN 德州仪器 | 类似代替 | ADC0838CCN/NOPB和ADC0838CCN的区别 |
