双通道, 256位, SPI数字电位计 Dual, 256-Position, SPI Digital Potentiometer
Product Details
The AD5162 provides a compact 3 mm x 4.9 mm packaged solution for dual 256 position adjustment applications. This device performs the same electronic adjustment function as a 3-terminal mechanical potentiometer. Available in four different end-to-end resistance values 2.5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ, this low temperature coefficient device is ideal for high accuracy and stability-variable resistance adjustments.
The wiper settings are controllable through the SPI compatible digital interface. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch1.
Operating from a 2.7 V to 5.5 V power supply and consuming less than 6 µA allows the AD5162 to be used in portable battery-operated applications.
For applications that program the AD5162 at the factory, Analog Devices offers device programming software running on Windows® NT/2000/XP operating systems. This software effectively replaces the need for external SPI controllers, which in turn enhances the time to market of systems. An AD5162 evaluation kit and software are available. The kit includes a cable and instruction manual.
1 _The terms digital potentiometer, VT, and RDAC are used interchangeably_.
**Applications**
### Features and Benefits
–40°C to +125°C
容差 ±20 %
供电电流 3.50 µA
电路数 2
针脚数 256
时钟频率 25.0MHz max
电阻 50 kΩ
阻值偏差 ±20 %
静态电流 3.50 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
安装方式 Surface Mount

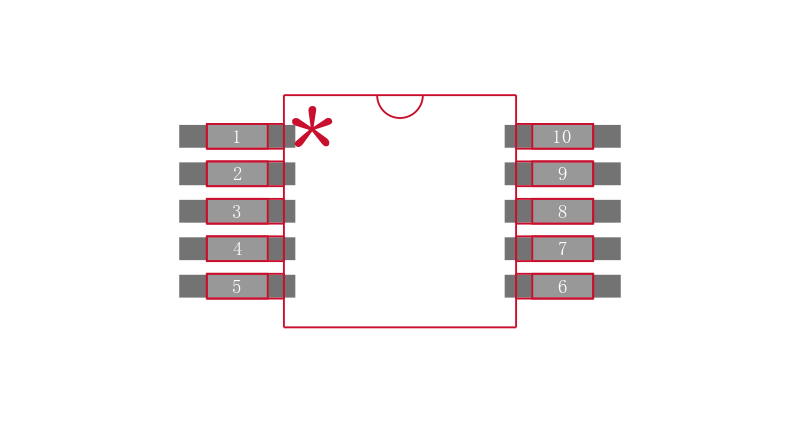

引脚数 10

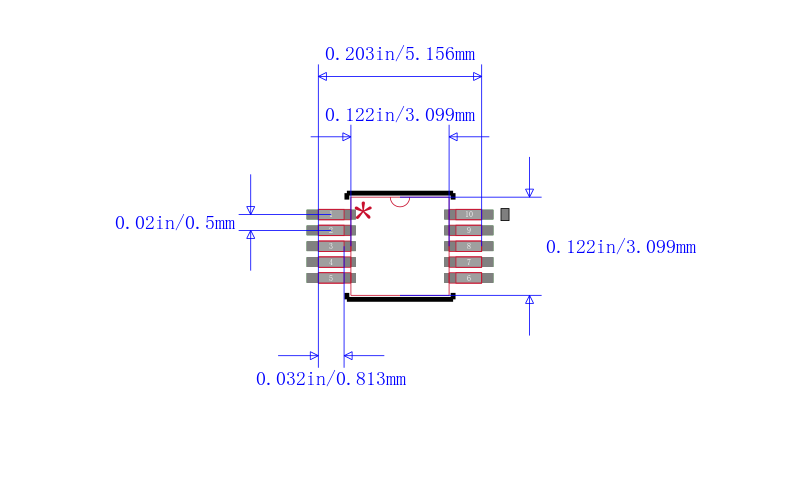

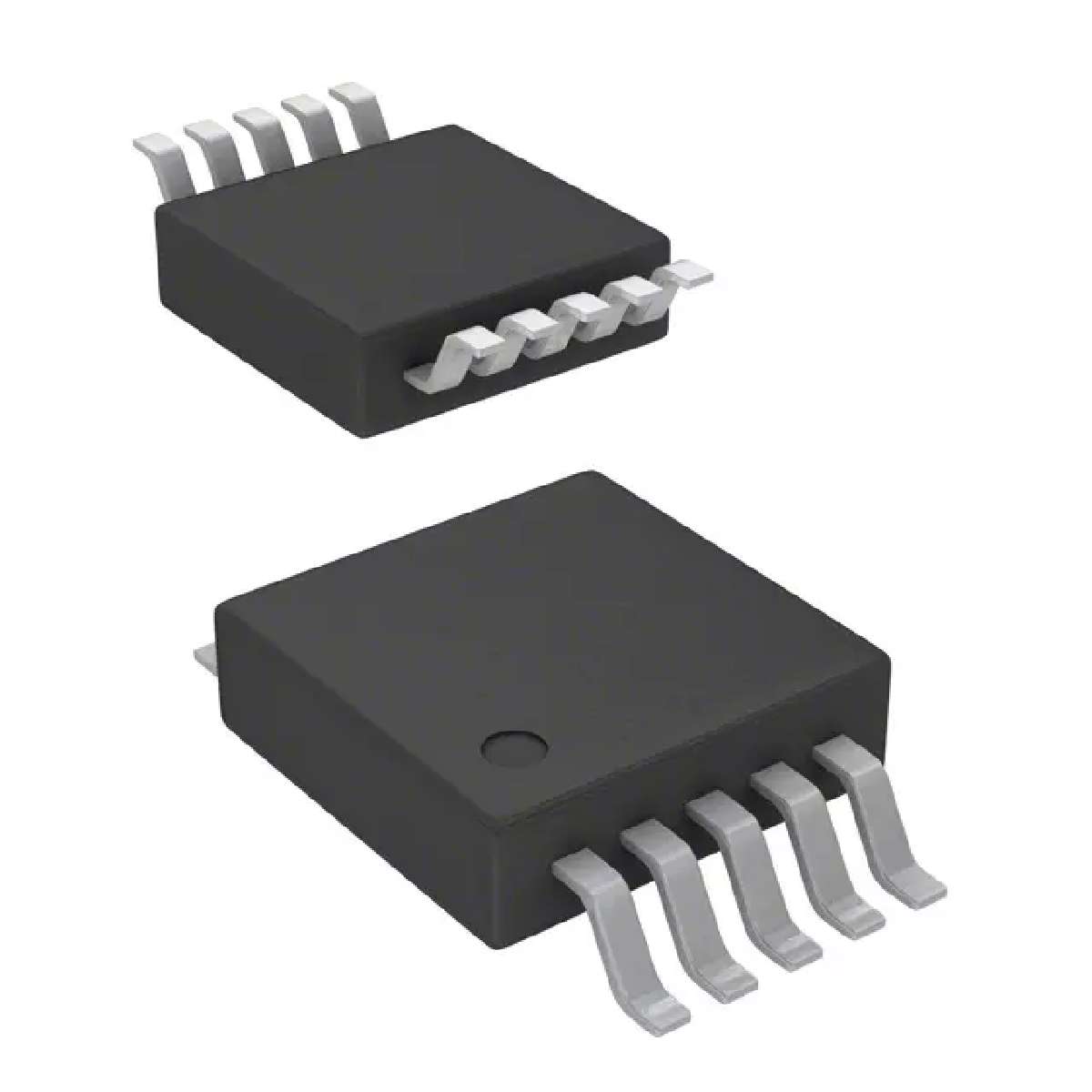

封装 MSOP-10
长度 3 mm
宽度 3 mm
高度 0.85 mm
封装 MSOP-10
工作温度 -40℃ ~ 125℃
温度系数 ±35 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5162BRMZ50-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5162BRM50 亚德诺 | 完全替代 | AD5162BRMZ50-RL7和AD5162BRM50的区别 |
AD5162BRM50-RL7 亚德诺 | 完全替代 | AD5162BRMZ50-RL7和AD5162BRM50-RL7的区别 |
AD5162BRMZ50 亚德诺 | 类似代替 | AD5162BRMZ50-RL7和AD5162BRMZ50的区别 |
