ABS1412513

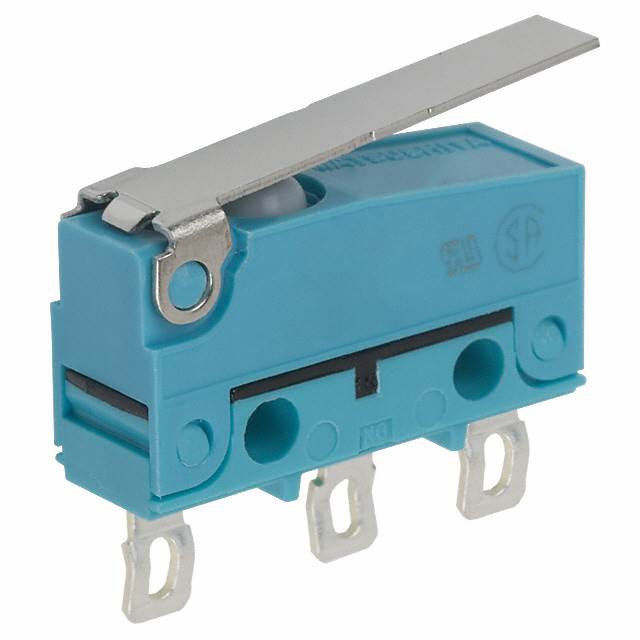

ABS1412513图片1
ABS1412513概述

Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 0.1A 250VAC 30VDC 0.54N Screw Mount Carton/Case

is manufactured by Electric and is categorized in the Snap Action, Limit Switches category. ABS1412513 is described as SWITCH SNAP ACT SPDT 100MA 125V. Perfect Parts is a supplier of Switches and other Electromechanicals.


艾睿:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 0.1A 250VAC 30VDC 0.54N Screw Mount Automotive Carton/Case


Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 0.1A 250VAC 30VDC 0.54N Screw Mount Carton/Case


Verical:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 0.1A 250VAC 30VDC 0.54N Screw Mount Solder Automotive Carton/Case


Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 0.1A 250VAC 30VDC 0.54N Screw Mount Solder Automotive Carton/Case


ABS1412513中文资料参数规格
技术参数

额定电流Max 0.1A @250VAC, 30VDC

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压DC Max 30 V

额定电压AC Max 250 V

封装参数

安装方式 Screw, Solder

外形尺寸

长度 21.8 mm

宽度 6.4 mm

高度 19 mm

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买ABS1412513
型号: ABS1412513
制造商: Panasonic 松下
描述:Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 0.1A 250VAC 30VDC 0.54N Screw Mount Carton/Case
