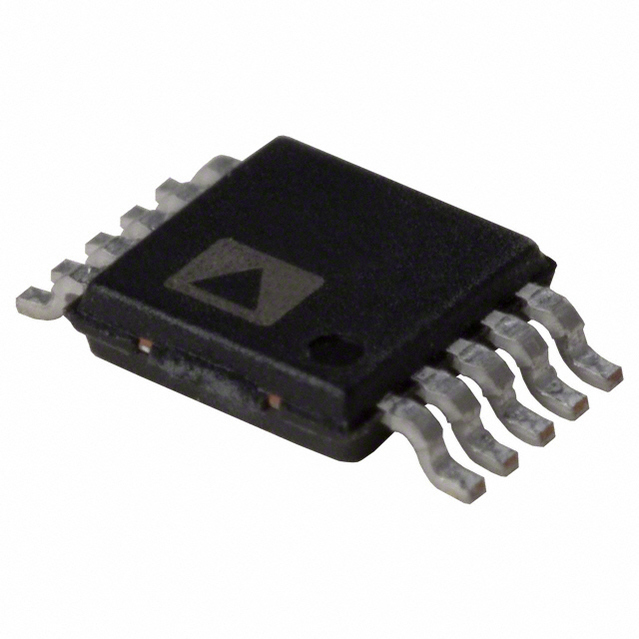

ANALOG DEVICES  AD5271BRMZ-20  非易失性数字电位器, 20 kohm, 单, 串行, SPI, 线性, ± 1%, 2.7 V

The is a single-channel Digital Rheostat that combines industry leading variable resistor performance with non-volatile memory NVM. The AD5271 ensure less than 1% end-to-end resistor tolerance error and offer 50-times programmable 50-TP memory. The guaranteed industry leading low resistor tolerance error feature simplifies open-loop applications as well as precision calibration and tolerance matching applications. The AD5271 device wiper settings are controllable through the SPI digital interface. Unlimited adjustments are allowed before programming the resistance value into the 50-TP memory. It does not require any external voltage supply to facilitate fuse blow and there are 50 opportunities for permanent programming. During 50-TP activation, a permanent blow fuse command freezes the resistance position analogous to placing epoxy on a mechanical trimmer.

.
SPI-compatible interface
.
Wiper setting readback
.
Power on refreshed from 50-TP memory
.
50-times Programmable 50-TP wiper memory
.
20, 50 and 100kR Nominal resistance
AD5271BRMZ-20中文资料参数规格
技术参数

电源电压DC 2.70V min

容差 ±1 %

供电电流 0.001 mA

电路数 1

针脚数 10

电阻 20 kΩ

阻值偏差 ±1 %

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压Max 5.5 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 10

封装 MSOP-10

外形尺寸

宽度 3 mm

封装 MSOP-10

物理参数

工作温度 -40℃ ~ 125℃

温度系数 ±5 ppm/℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 Signal Processing, Power Management, 传感与仪器, 信号处理, Sensing & Instrumentation, 电源管理

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

AD5271BRMZ-20引脚图与封装图

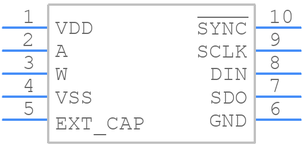

AD5271BRMZ-20引脚图

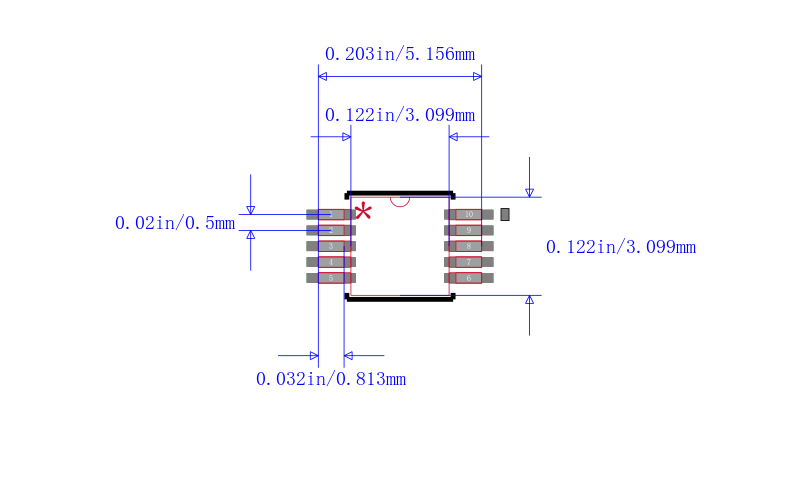

AD5271BRMZ-20封装图
AD5271BRMZ-20电路图
AD5271BRMZ-20封装焊盘图
