ADS7827IDRBTG4

模数转换器 - ADC 5.25V-2.7V 8 bit 250KSPS Synch Serial

DESCRIPON

The ADS7826/27/29 is a family of 10/8/12-bit sampling analog-to-digital converters A/D with assured specifi-cations at 2.7-V supply voltage. It requires very little power even when operating at the full sample rate. At lower conversion rates, the high speed of the device enables it to spend most of its time in the power down mode— the power dissipation is less than 60 µW at 7.5 kHz.

FEATURES

· High Throughput at Low Supply Voltage2.7 V VCC

  – ADS7829: 12-bit 125 KSPS

  – ADS7826: 10-bit 200 KSPS

–   ADS7827: 8-bit 250 KSPS

· Very Wide Operating Supply VoltageL: 2.7 V to 5.25 V as Low as 2.0 V With Reduced Performance

· Rail-to-Rail, Pseudo Differential Input

· Wide Reference Voltage: 50 mV to VCC

· Micropower Auto Power-Down: – Less Than 60 µW at 75 kHz, 2.7 V VCC

· Low Power Down Current: 3 µA Max

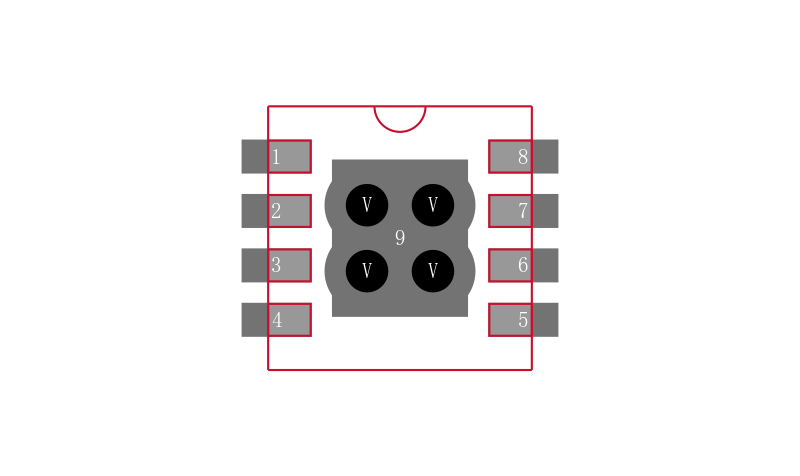

· Ultra Small Chip Scale Package: 8-pin 3 x 3 PDSO SON, Same Size as QFN

· SPI™ Compatible Serial Interface

APPLICATIONS

· Battery Operated Systems

· Remote Data Acquisition

· Isolated Data Acquisition

· Simultaneous Sampling, Multichannel Systems
