AD5170BRMZ10-RL7

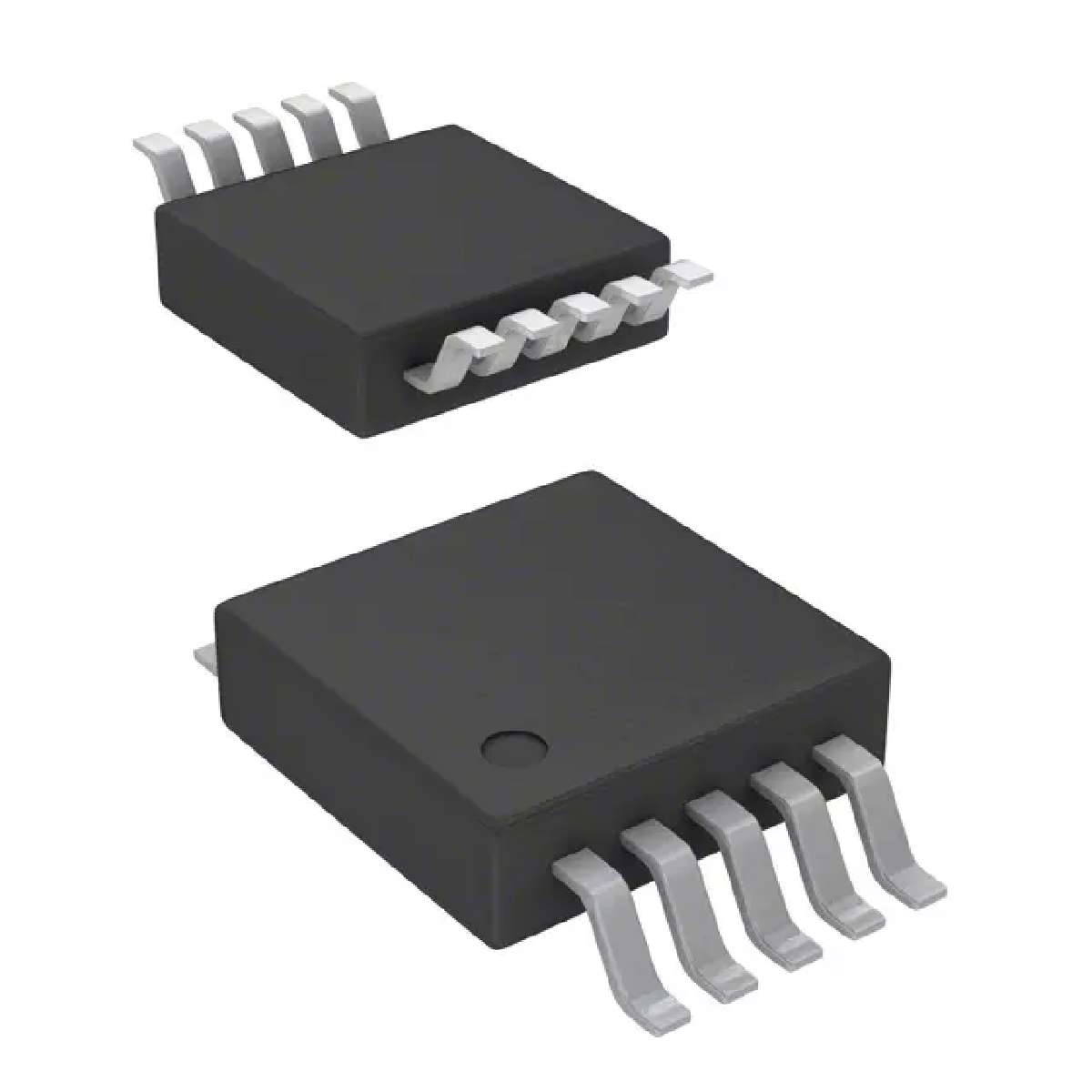

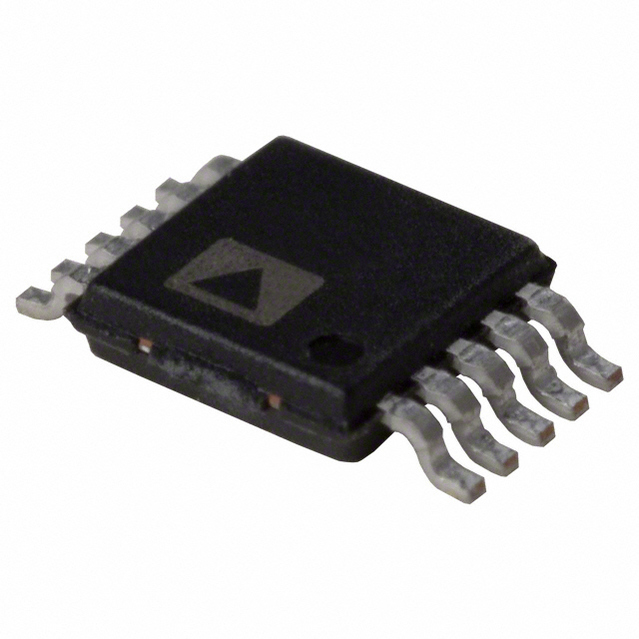

AD5170BRMZ10-RL7图片1
AD5170BRMZ10-RL7图片2
AD5170BRMZ10-RL7图片3
AD5170BRMZ10-RL7图片4
AD5170BRMZ10-RL7图片5
AD5170BRMZ10-RL7图片6
AD5170BRMZ10-RL7概述

Digital Potentiometer 256POS 10KΩ Single 10Pin MSOP T/R

10k 欧姆 1 电路 256 抽头 I²C 接口 10-MSOP


得捷:
IC DGTL POT 10KOHM 256TAP 10MSOP


立创商城:
AD5170BRMZ10-RL7


艾睿:
Easily trim away and fine tune resistance by adopting this AD5170BRMZ10-RL7 digital potentiometer from Analog Devices. This digital potentiometer has a temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device uses a single power supply.


Chip1Stop:
Digital Potentiometer 256POS 10KOhm Single 10-Pin MSOP T/R


Verical:
Digital Potentiometer 10kOhm 256POS Automotive 10-Pin MSOP T/R


罗切斯特:
Digital Potentiometer 256POS 10kOhm Single Automotive 10-Pin MSOP T/R


AD5170BRMZ10-RL7中文资料参数规格
技术参数

容差 ±20 %

供电电流 0.0035 mA

电路数 1

针脚数 256

电阻 10 kΩ

阻值偏差 ±20 %

静态电流 3.50 µA

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 2.7V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 10

封装 MSOP-10

外形尺寸

宽度 3 mm

高度 0.85 mm

封装 MSOP-10

物理参数

工作温度 -40℃ ~ 125℃

温度系数 ±35 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

AD5170BRMZ10-RL7引脚图与封装图

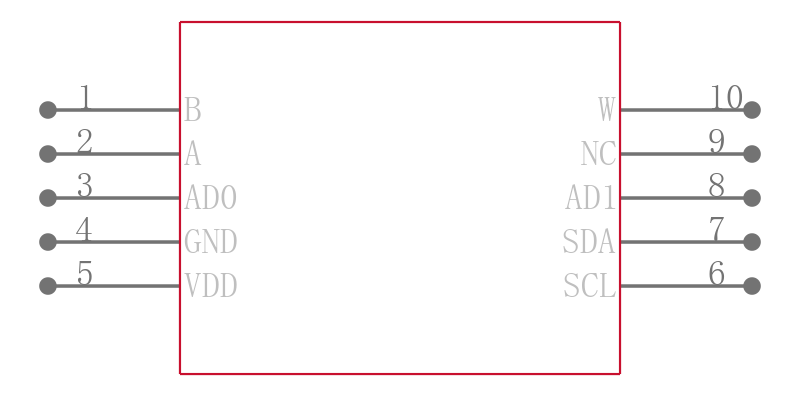

AD5170BRMZ10-RL7引脚图
AD5170BRMZ10-RL7封装图
AD5170BRMZ10-RL7电路图

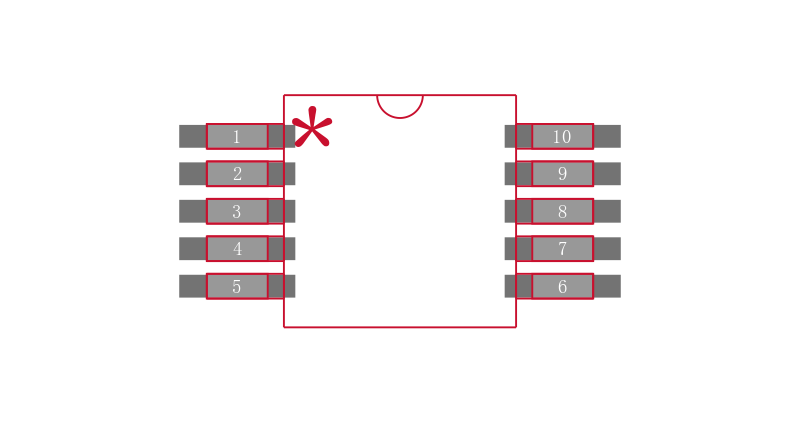

AD5170BRMZ10-RL7封装焊盘图
在线购买AD5170BRMZ10-RL7
型号: AD5170BRMZ10-RL7
制造商: ADI 亚德诺
描述:Digital Potentiometer 256POS 10KΩ Single 10Pin MSOP T/R
替代型号AD5170BRMZ10-RL7
型号/品牌 代替类型 替代型号对比

AD5170BRMZ10-RL7

ADI 亚德诺

当前型号

当前型号

AD5170BRMZ10

亚德诺

完全替代

AD5170BRMZ10-RL7和AD5170BRMZ10的区别

AD5170BRM10

亚德诺

类似代替

AD5170BRMZ10-RL7和AD5170BRM10的区别

AD5170BRM10-RL7

亚德诺

类似代替

AD5170BRMZ10-RL7和AD5170BRM10-RL7的区别
