数模转换器- DAC 10-BIT 12C nano DAC+ wit on-chip ref
Product Details

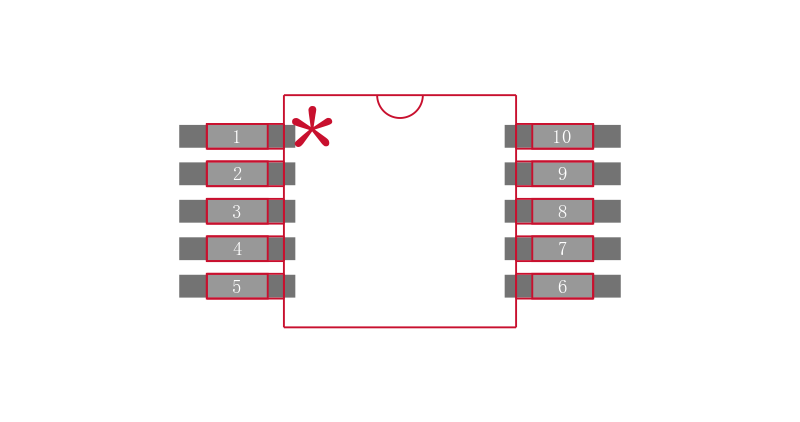

The AD5310R/AD5311R, members of the _nano_DAC™ family, are low power, single-channel, 10-bit buffered voltage-out DACs. The devices include a 2.5 V, 2 ppm/°C internal reference. The output span can be programmed to be 0 V to VREF or 0 V to 2 ×VREF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in 10-lead MSOP packages.
The AD5310R/AD5311R also incorporate a power-on reset circuit that ensures that the DAC output powers up to zeroscale and remains there until a valid write takes place. The device contains a power-down feature that reduces the current consumption of the device to 2 μA at 5 V while in power-down mode.
The AD5310R/AD5311R use a versatile SPI or I2C interface, including an asynchronous RESET pin and a VLOGIC pin, allowing 1.8 V compatibility.
**PRODUCT HIGHLIGHTS**
1. High Relative Accuracy INL.
±0.5 LSB maximum.
2. Low Drift 2.5 V On-Chip Reference.
5 ppm/°C maximum temperature coefficient.
**APPLICATIONS**
### Features and Benefits
±0.5 LSB maximum
2 ppm/°C typical
2.5 V or 5 V
0.06% of FSR maximum
Offset error: ±1.5 mV maximum
Gain error: ±0.05 % of FSR maximum
1.8 V to 5.5 V
−40°C to +105°C
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5311RBRMZ-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5311RBRMZ 亚德诺 | 完全替代 | AD5311RBRMZ-RL7和AD5311RBRMZ的区别 |
