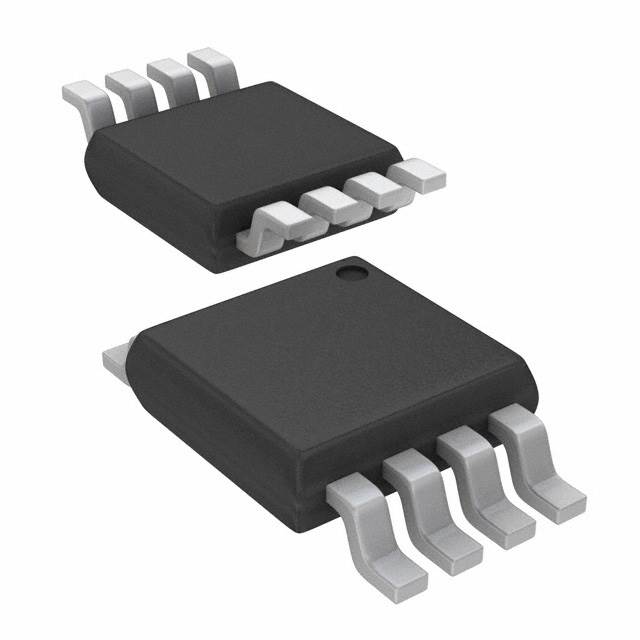

ADC121C021CIMM/NOPB概述

TEXAS INSTRUMENTS  ADC121C021CIMM/NOPB  模数转换器, 12 bit, 188.9 kSPS, 单, 2.7 V, 5.5 V, VSSOP

The is a 12-bit monolithic Analog-to-digital Converter ADC that operates from a 2.7 to 5.5V supply. The low-power converter is based upon successive approximation register architecture with an internal track-and-hold circuit that can handle input frequencies up to 11MHz. This converter operates from a single supply which also serves as the reference. The device features an I²C-compatible serial interface that operates in all three speed modes, including high speed mode. The alert feature provides an interrupt that is activated when the analog input violates a programmable upper or lower limit value. The device features an automatic conversion mode, which frees up the controller and I²C interface. In this mode, the ADC continuously monitors the analog input for an out-of-range condition and provides an interrupt if the measured voltage goes out-of-range. The automatic power-down feature reduces the power consumption to less than 1µW while not converting.

.
Extended power supply range
.
Up to nine pin-selectable chip addresses
.
Out-of-range alert function
.
Automatic power-down mode while not converting
.
Green product and no Sb/Br
ADC121C021CIMM/NOPB中文资料参数规格
技术参数

电源电压DC 2.70V min

供电电流 740 µA

电路数 1

针脚数 8

位数 12

采样率 188.9 ksps

功耗 260 µW

模数转换数ADC 1

输入数 1

工作温度Max 105 ℃

工作温度Min -40 ℃

输入通道数 1

电源电压 2.7V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 2.7 V

输入电压 5.5 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 VSSOP-8

外形尺寸

封装 VSSOP-8

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 测试与测量, 车用, 传感与仪器, 医用, 便携式器材

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

ADC121C021CIMM/NOPB引脚图与封装图
ADC121C021CIMM/NOPB引脚图

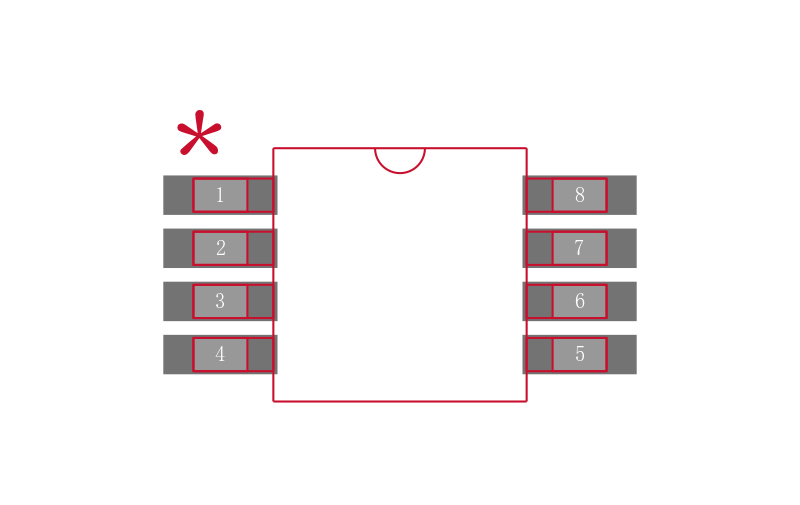

ADC121C021CIMM/NOPB封装图

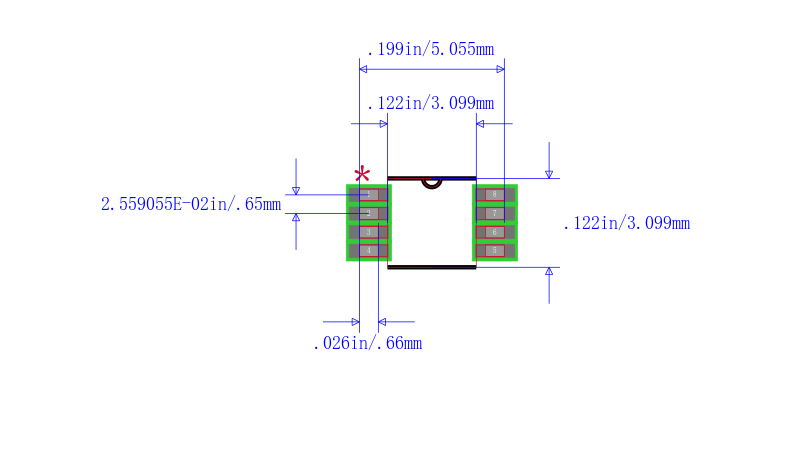

ADC121C021CIMM/NOPB封装焊盘图
在线购买ADC121C021CIMM/NOPB
型号: ADC121C021CIMM/NOPB
制造商: TI 德州仪器
描述:TEXAS INSTRUMENTS  ADC121C021CIMM/NOPB  模数转换器, 12 bit, 188.9 kSPS, 单, 2.7 V, 5.5 V, VSSOP
替代型号ADC121C021CIMM/NOPB
型号/品牌 代替类型 替代型号对比

ADC121C021CIMM/NOPB

TI 德州仪器

当前型号

当前型号

ADC121C021CIMMX

美国国家半导体

类似代替

ADC121C021CIMM/NOPB和ADC121C021CIMMX的区别
