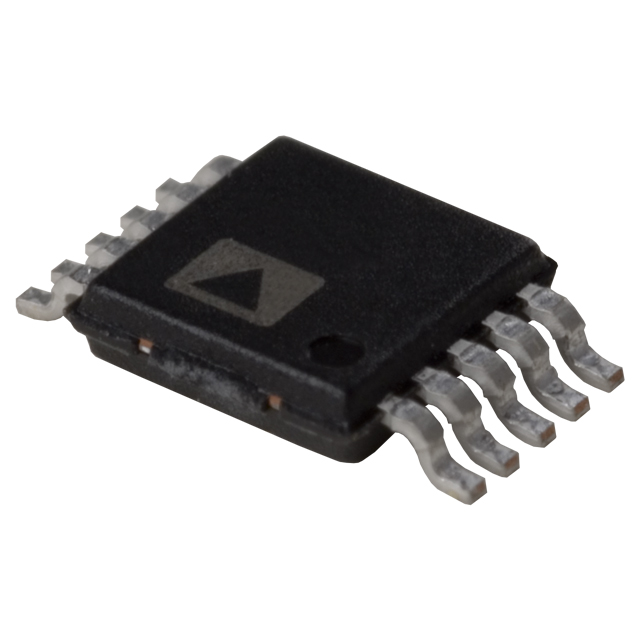

AD5170BRMZ10概述

ANALOG DEVICES  AD5170BRMZ10  非易失性数字电位器, 10 kohm, 单, I2C, ± 20%, 2.7 V

The is a two-time programmable Digital Potentiometer employs fuse link technology, giving users two opportunities to permanently program the resistance setting. For users who do not need to program the digital potentiometer setting in memory more than once, the OTP feature is an alternative to EEMEM. The AD5170 performs the same electronic adjustment function as mechanical potentiometers or variable resistors with enhanced resolution, solid-state reliability and superior low temperature coefficient performance. The AD5170 is programmed using a 2-wire, I²C®-compatible digital interface. Unlimited adjustments are allowed before permanently setting the resistance value and there are two opportunities for permanent programming. During OTP activation, a permanent blow fuse command freezes the wiper position analogous to placing epoxy on a mechanical trimmer.

.
Two-time programmable set-and-forget resistance setting allows second-chance permanent programming
.
Unlimited adjustments prior to one-time programming OTP activation
.
OTP overwrite allows dynamic adjustments with user-defined preset
.
Full read/write of wiper register
.
power-ON preset to midscale
AD5170BRMZ10中文资料参数规格
技术参数

电源电压DC 2.70V min

容差 ±20 %

供电电流 0.0035 mA

电路数 1

针脚数 256

电阻 10 kΩ

阻值偏差 ±20 %

静态电流 3.50 µA

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 2.7V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 10

封装 MSOP-10

外形尺寸

高度 0.85 mm

封装 MSOP-10

物理参数

工作温度 -40℃ ~ 125℃

温度系数 ±35 ppm/℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 Signal Processing, 车用, 传感与仪器, Automotive, 信号处理, Sensing & Instrumentation

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

AD5170BRMZ10引脚图与封装图

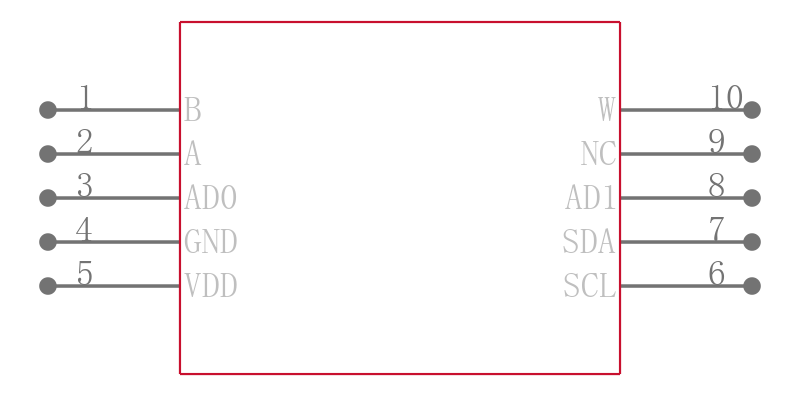

AD5170BRMZ10引脚图

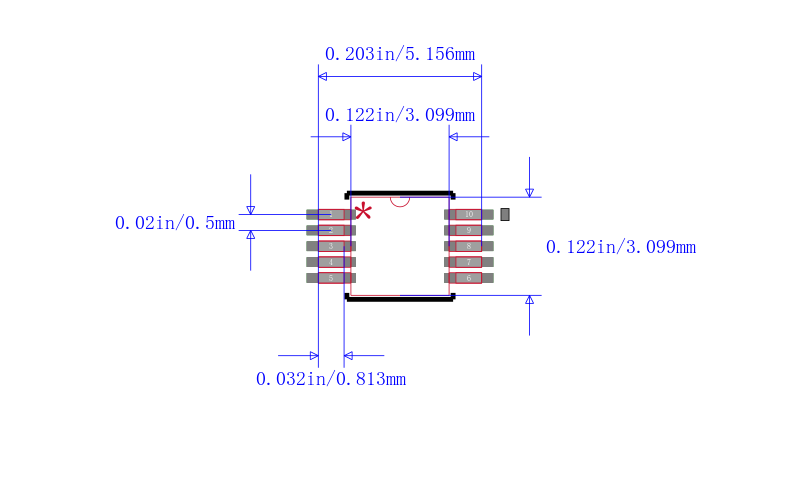

AD5170BRMZ10封装图
AD5170BRMZ10电路图

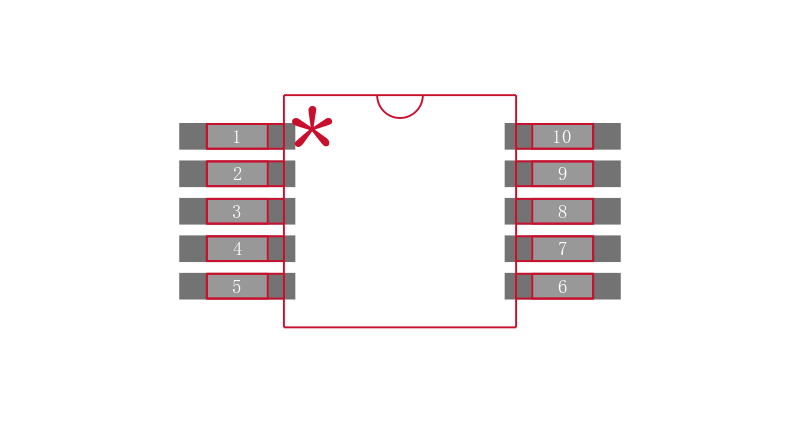

AD5170BRMZ10封装焊盘图
在线购买AD5170BRMZ10
型号: AD5170BRMZ10
制造商: ADI 亚德诺
描述:ANALOG DEVICES  AD5170BRMZ10  非易失性数字电位器, 10 kohm, 单, I2C, ± 20%, 2.7 V
替代型号AD5170BRMZ10
型号/品牌 代替类型 替代型号对比

AD5170BRMZ10

ADI 亚德诺

当前型号

当前型号

AD5170BRMZ10-RL7

亚德诺

完全替代

AD5170BRMZ10和AD5170BRMZ10-RL7的区别

AD5170BRMZ100

亚德诺

类似代替

AD5170BRMZ10和AD5170BRMZ100的区别

AD5170BRM10

亚德诺

类似代替

AD5170BRMZ10和AD5170BRM10的区别
