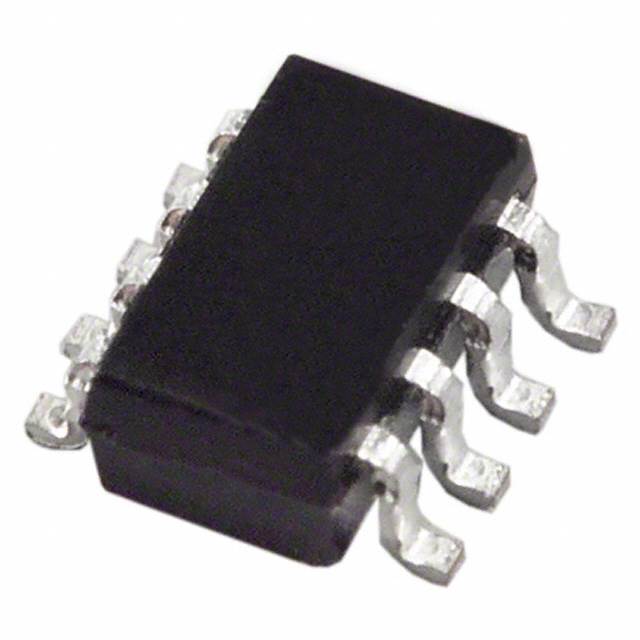

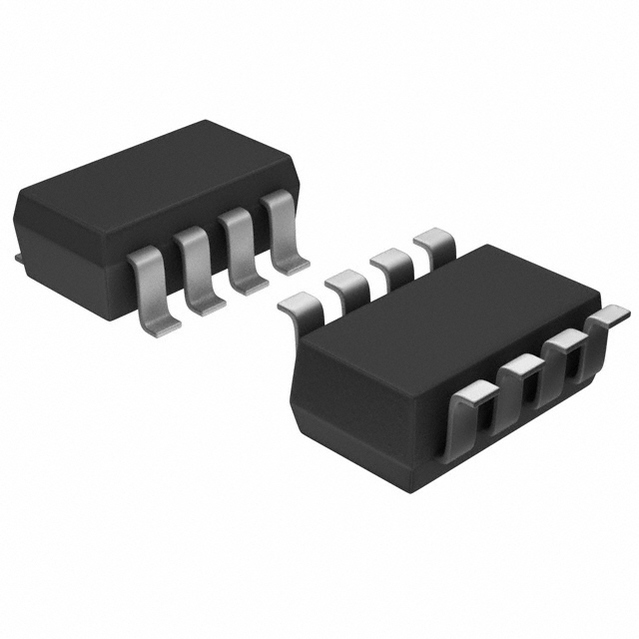

ANALOG DEVICES AD5171BRJZ100-R2 非易失性数字电位器, 100 kohm, 单, I2C, ± 30%, 2.7 V
数字电位计(单,100KΩ),Analog Devices
### 数字电位计 - Analog Devices
得捷:
IC DGT POT 100KOHM 64TAP SOT23-8
立创商城:
AD5171BRJZ100-R2
欧时:
Analog Devices AD5171BRJZ100-R2 100kΩ 64位置 线性 数字电位计 , 支持多种控制接口, 8引脚 SOT-23封装
贸泽:
Digital Potentiometer ICs IC 6-Bit OTP I2C
艾睿:
Have complete control over the input resistance going into a controller for processing by using this AD5171BRJZ100-R2 digital potentiometer developed by Analog Devices. This digital potentiometer has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device uses a single power supply.
Chip1Stop:
Digital Potentiometer 64POS 100kOhm Single Automotive 8-Pin SOT-23 T/R
Verical:
Digital Potentiometer 100kOhm 64POS Automotive 8-Pin SOT-23 T/R
Newark:
# ANALOG DEVICES AD5171BRJZ100-R2 Non Volatile Digital Potentiometer, 100 kohm, Single, I2C, ± 30%, 2.7 V
罗切斯特:
AD5171 - 64-Position One-Time Programmable, Digital Potentiometer
电源电压DC 2.70V min
容差 ±30 %
供电电流 0.004 mA
电路数 1
针脚数 8
时钟频率 400kHz max
电阻 100 kΩ
阻值偏差 ±30 %
静态电流 4.00 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8

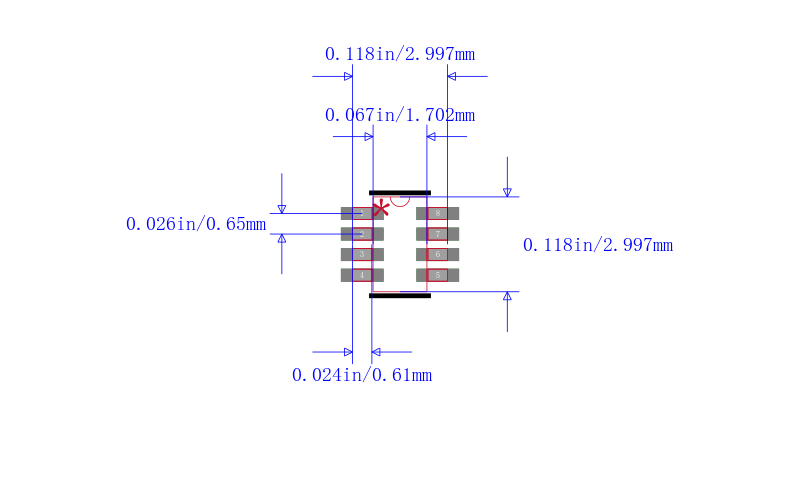

封装 SOT-23-8
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-8
工作温度 -40℃ ~ 125℃
温度系数 ±35 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5171BRJZ100-R2 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5171BRJZ100-R7 亚德诺 | 完全替代 | AD5171BRJZ100-R2和AD5171BRJZ100-R7的区别 |
AD5171BRJ100-R2 亚德诺 | 类似代替 | AD5171BRJZ100-R2和AD5171BRJ100-R2的区别 |
AD5171BRJ100-RL7 亚德诺 | 类似代替 | AD5171BRJZ100-R2和AD5171BRJ100-RL7的区别 |
