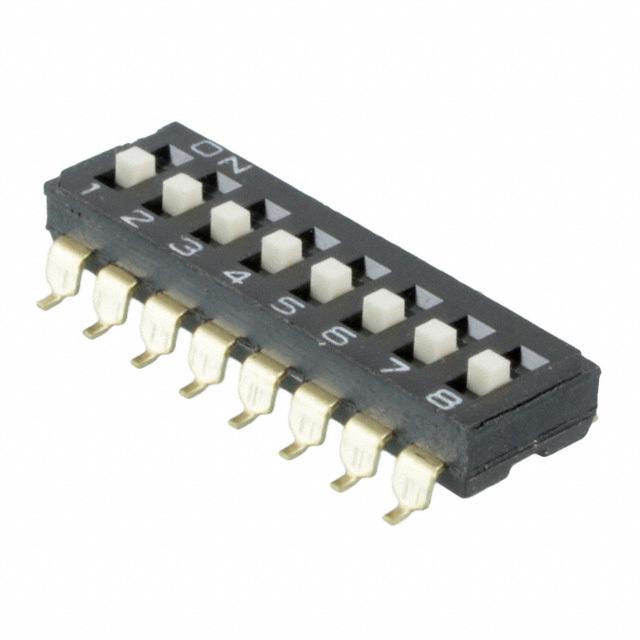

Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD T/R
is manufactured by Elect and is categorized in the DIP Switches category. A6S-8104-PMH is described as SWITCH SLIDE DIP SPST 25MA 24V. Perfect Parts is a supplier of Switches and other Electromechanicals.
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
艾睿:
Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD T/R
Chip1Stop:
Switch DIP ON OFF SPST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD Embossed T/R
Verical:
Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD T/R
Newark:
# OMRON ELECTRONIC COMPONENTS A6S-8104-PMH Tape Reel Dip Switch
MASTER:
Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD T/R
Electro Sonic:
Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD T/R
额定电压DC 24 V
额定电流 25 mA
针脚数 8
额定电流Max 0.025A @24VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 200 mΩ
安装方式 Surface Mount
封装 DIP
长度 21.26 mm
宽度 9.8 mm
高度 4.4 mm
封装 DIP
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
A6S-8104-PMH Omron 欧姆龙 | 当前型号 | 当前型号 |
A6S-8104-PH 欧姆龙 | 完全替代 | A6S-8104-PMH和A6S-8104-PH的区别 |
A6S-8104-H 欧姆龙 | 类似代替 | A6S-8104-PMH和A6S-8104-H的区别 |
TDA08H0SB1 C&K Components | 功能相似 | A6S-8104-PMH和TDA08H0SB1的区别 |
