超低功耗,单通道电容式转换器,用于近程传感 Ultra-Low Power, 1-Channel, Capacitance Converter for Proximity Sensing
Product Details
The AD7151 delivers a complete signal processing solution for capacitive proximity sensors, featuring an ultra-low power converter with fast response time. The AD7150 is a two-channel alternative to the AD7151.
The AD7151 uses Analog Devices, Inc., capacitance-to-digital converter CDC technology, which combines features important for interfacing to real sensors, such as high input sensitivity and high tolerance of both input parasitic ground capacitance and leakage current.
The integrated adaptive threshold algorithm compensates for any variations in the sensor capacitance due to environmental factors like humidity and temperature or due to changes in the dielectric material over time.
By default, the AD7151 operates in standalone mode using the fixed power-up settings and indicates detection on a digital output. Alternatively, the AD7151 can be interfaced to a microcontroller via the serial interface, the internal registers can be programmed with user-defined settings, and the data and status can be read from the part.
The AD7151 operates with a 2.7 V to 3.6 V power supply. It is specified over the temperature range −40°C to +85°C.
**Applications**
### Features and Benefits
2.7 V to 3.6 V, 70 µA
Sensor capacitance CSENS 0 up to 13 pF
Sensitivity to 1 fF
Standalone with fixed settings
Interfaced to a microcontroller for user-defined settings
−40°C to +85°C
供电电流 70 µA
耗散功率 300 µW
分辨率Bits 12.0
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 10

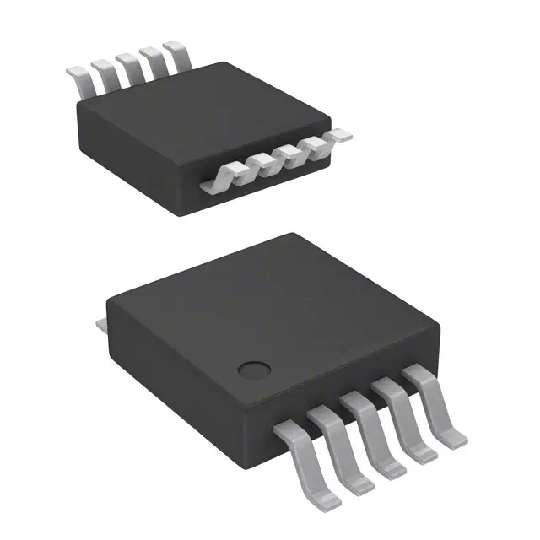

封装 MSOP-10
封装 MSOP-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Healthcare, LED General Lighting, Life Sciences & Medical Instrumentation, Building Technology
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7151BRMZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD7151BRMZ 亚德诺 | 类似代替 | AD7151BRMZ-REEL和AD7151BRMZ的区别 |
AD7150BRMZ 亚德诺 | 类似代替 | AD7151BRMZ-REEL和AD7150BRMZ的区别 |
AD7150BRMZ-REEL 亚德诺 | 类似代替 | AD7151BRMZ-REEL和AD7150BRMZ-REEL的区别 |
