AD5260BRUZ20-RL7

1 / 2通道15 V数字电位计 1-/2-Channel 15 V Digital Potentiometer

Product Details

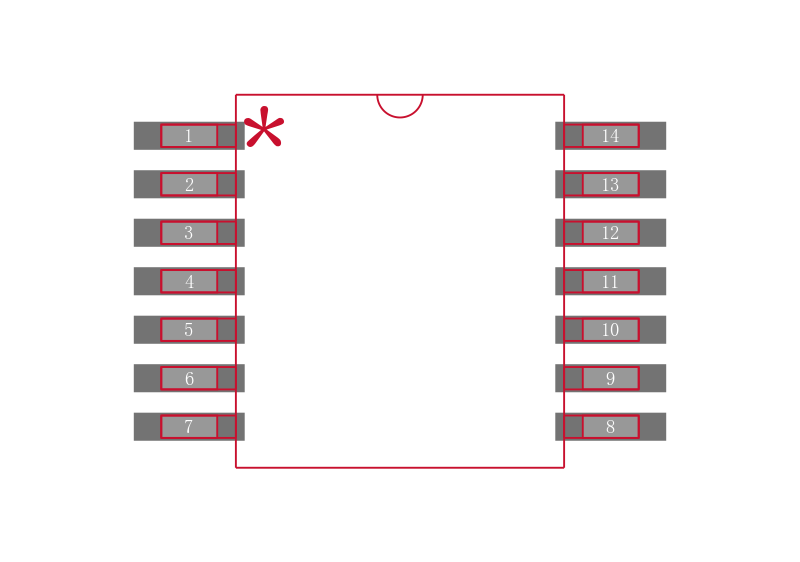

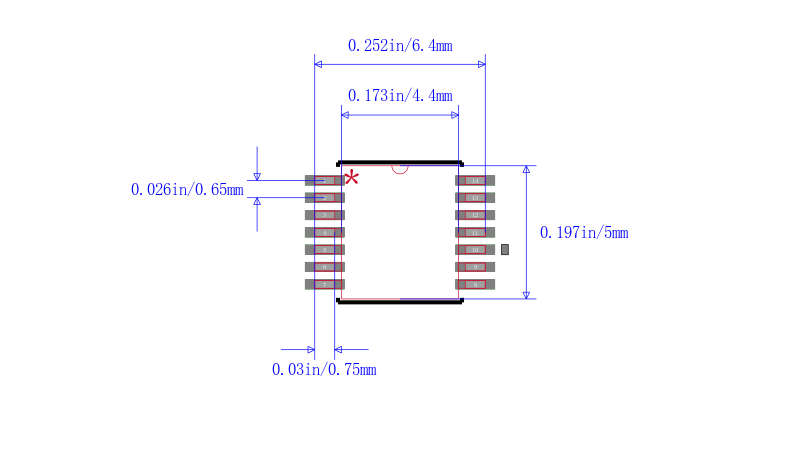

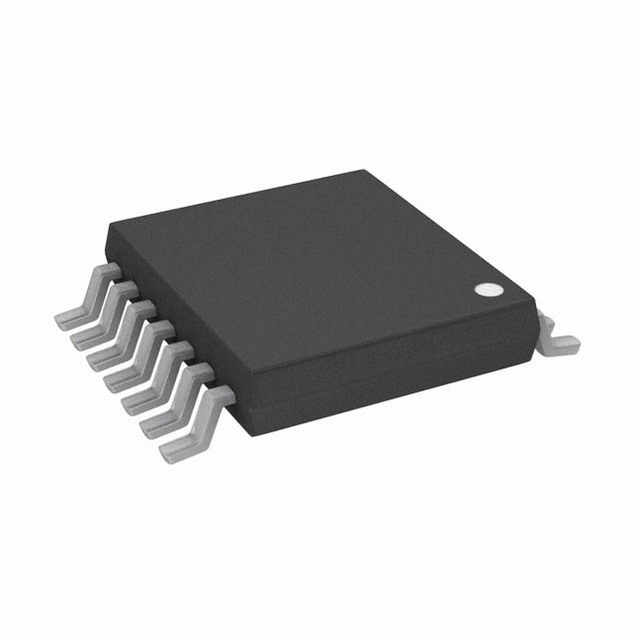

The AD5260 and AD5262 are 1- and 2-channel, 256 position, SPI interface digitally controlled, variable resistor VR devices. These parts operate from either a single +5 V to +15 V supply or a dual ±5 V supply, extending terminal voltage adjustment to these supply voltages. Most industry digital potentiometers are limited to a 5 V operating range. These devices perform the same electronic adjustment function as a potentiometer or variable resistor while offering solid-state reliability and electronic packaging compactness. These devices are offered in the thin 1.1 mm height TSSOP 14- and 16-lead surface mount packages.

### Features and Benefits

.

AD5262 – 2-Channel Independently Programmable

.

Potentiometer Replacement 20 kO, 50 kO, 200 kO

.

5 V to 15 V Single-Supply; ±5.5 V Dual-Supply Operation

.

256 Positions

.

AD5260 – 1-Channel

.

Low Temperature Coefficient 35 ppm/°C

.

4-Wire SPI-Compatible Serial Data Input

.

Power ON Mid-Scale Preset
