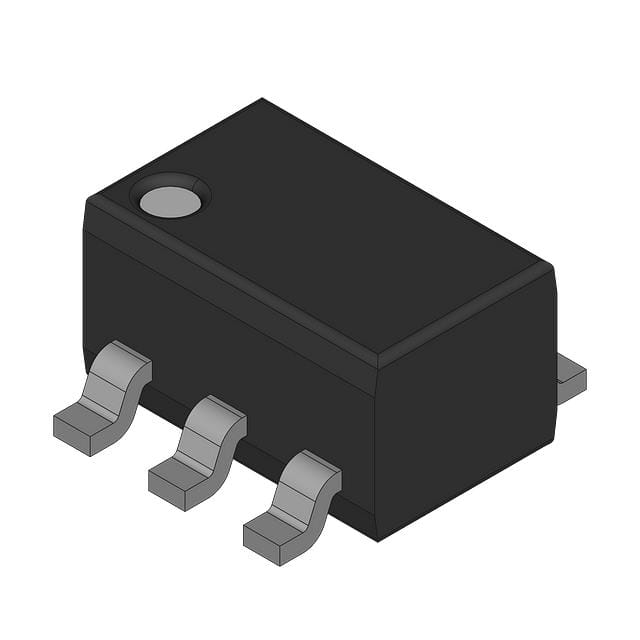

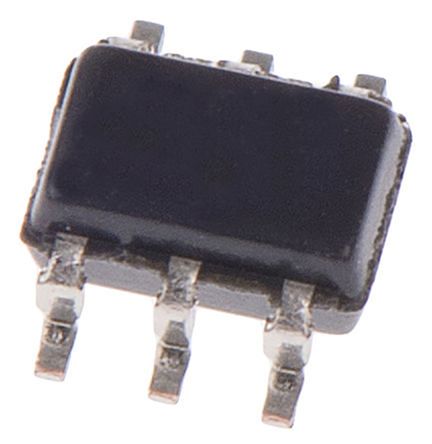

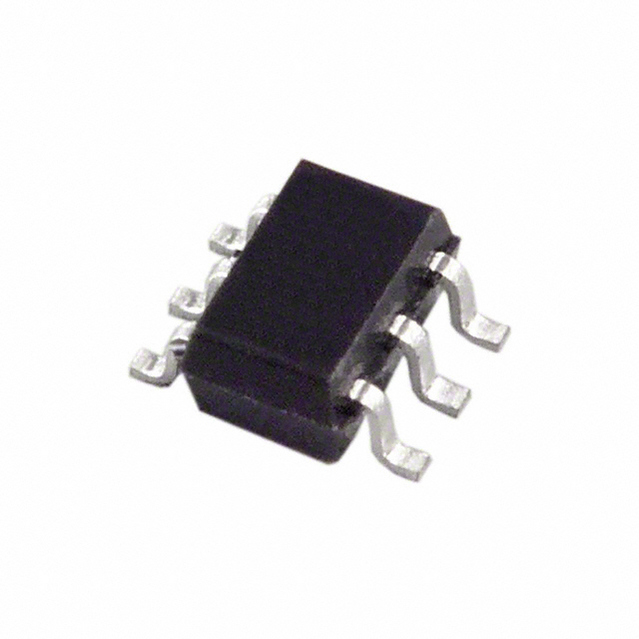

ANALOG DEVICES AD5612YKSZ-1500RL7 数模转换器, 10 bit, 1.7 MSPS, 串行, 2.7V 至 5.5V, SC-70, 6 引脚
模数转换器 10 位,Analog Devices
### 数字到模拟转换器 - Analog Devices
得捷:
IC DAC 10BIT V-OUT SC70-6
立创商城:
AD5612YKSZ-1500RL7
欧时:
Analog Devices AD5612YKSZ-1500RL7 , 10 位 DAC, I2C接口, 6引脚 SC-70封装
贸泽:
Digital to Analog Converters - DAC 10bit Low V Single Supplys
艾睿:
If you are looking for a way to convert a digital stream of data into a perceptible analog signal, Analog Devices brings you their AD5612YKSZ-1500RL7 DAC converter as a solution. It has a voltage output. This device&s;s digital interface is serial 2-wire, i2c. This device is based on Resistor-String architecture. This DAC has a resolution of 10bit. This DAC has a temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device uses a single power supply.
Chip1Stop:
DAC 1-CH Resistor-String 10-bit 6-Pin SC-70 T/R
Verical:
DAC 1-CH Resistor-String 10-bit Automotive 6-Pin SC-70 T/R
罗切斯特:
DAC 1-CH Resistor-String 10-bit Automotive 6-Pin SC-70 T/R
输出接口数 1
通道数 1
针脚数 6
位数 10
耗散功率 0.5 mW
采样率 1.70 MHz
分辨率Bits 10.0
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 0.5 mW
数模转换数DAC 1
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5612YKSZ-1500RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5612YKSZ-1REEL7 亚德诺 | 类似代替 | AD5612YKSZ-1500RL7和AD5612YKSZ-1REEL7的区别 |
DAC6311IDCKT 德州仪器 | 功能相似 | AD5612YKSZ-1500RL7和DAC6311IDCKT的区别 |
