AD5272BRMZ-100-RL7

1024 / 256位， 1 ％电阻容差误差， I2C接口和50 -TP存储器数字电位器 1024-/256-Position, 1% Resistor Tolerance Error, I2C Interface and 50-TP Memory Digital Rheostat

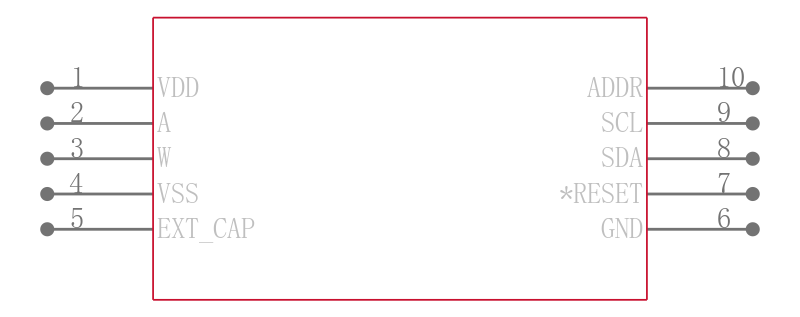

Product Details

The AD5272/AD5274 are single-channel, 1024-/256-position digital rheostats that combine industry leading variable resistor performance with nonvolatile memory NVM in a compact package.

The AD5272/AD5274 ensure less than 1% end-to-end resistor tolerance error and offer 50-times programmable 50-TP memory.

The guaranteed industry leading low resistor tolerance error feature simplifies open-loop applications as well as precision calibration and tolerance matching applications.

The AD5272/AD5274 device wiper settings are controllable through the I2C-compatible digital interface. Unlimited adjustments are allowed before programming the resistance value into the 50-TP memory. The AD5272/AD5274 do not require any external voltage supply to facilitate fuse blow and there are 50 opportunities for permanent programming. During 50-TP activation, a permanent blow fuse command freezes the wiper position analogous to placing epoxy on a mechanical trimmer.

The AD5272/AD5274 are available in a 3 mm × 3 mm 10-lead LFCSP package and in a 10-lead MSOP package. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.

**Applications**

.

Mechanical rheostat replacements

.

Op-amp: variable gain control

.

Instrumentation: gain, offset adjustment

.

Programmable voltage to current conversions

.

Programmable filters, delays, time constants

.

Programmable power supply

.

Sensor calibration

### Features and Benefits

.

Single-channel, 1024-/256-position resolution

.

20 kΩ, 50 kΩ, 100 kΩ nominal resistance

.

Maximum ±1% nominal resistor tolerance error

.

50-times programmable 50-TP wiper memory

.

Rheostat mode temperature coefficient: 5 ppm/°C

.

2.7 V to 5.5 V single-supply operation

.

±2.5 V to ±2.75 V dual-supply operation for ac or bipolar operations

.

I2C-compatible interface

.

Wiper setting readback

.

Power on refreshed from 50-TP memory

.

Thin LFCSP 10-lead, 3 mm × 3 mm × 0.8 mm package

.

Compact MSOP, 10-lead 3 mm × 4.9 mm × 1.1 mm package
