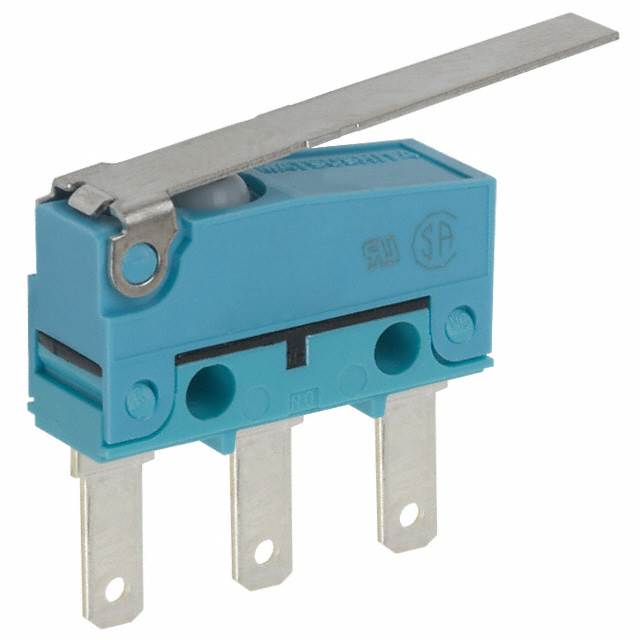

Switch Snap Action N.O./N.C. SPDT Long Hinge Lever Quick Connect 2A 250VAC 125VDC 0.44N Screw Mount Carton/Case
is manufactured by Electric and is categorized in the Snap Action, Limit Switches category. ABS1113509 is described as SWITCH SNAP ACTION SPDT 2A 125V. Perfect Parts is a supplier of Switches and other Electromechanicals.
贸泽:
Basic / Snap Action Switches SPDT Hinge LVR Long QC
艾睿:
Switch Snap Action N.O./N.C. SPDT Long Hinge Lever Quick Connect 2A 250VAC 125VDC 0.44N Screw Mount Automotive Carton/Case
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Long Hinge Lever Quick Connect 2A 250VAC 125VDC 0.44N Screw Mount Carton/Case
额定电压DC 30 V
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 2 A
触点类型 SPDT
额定电流Max 2A @250VAC, 30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 125 V
额定电压AC Max 250 V
安装方式 Chassis, Quick Connect
长度 27.75 mm
宽度 6.4 mm
高度 23.3 mm
触点材质 Silver Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
