单通道, 0.5至1 MSPS , 12位A / D转换器 Single Channel, 0.5 to 1 Msps, 12-Bit A/D Converter
DESCRIPON
The ADC121S101 is a low-power, single channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S101 is fully specified over a sample rate range of 500 ksps to 1 Msps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
FEATURES
• Specified Over a Range of Sample Rates
• 6-lead WSON and SOT-23 Packages
• Variable Power Management
• Single Power Supply with 2.7V - 5.25V Range
• SPI™/QSPI™/MICROWIRE/DSP Compatible
• AEC-Q100 Grade 1 Qualified
电源电压DC 2.70V min
供电电流 2.00 mA
电路数 1
位数 12
采样率 1 Msps
功耗 2.00 mW
模数转换数ADC 1
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
输入通道数 1
输入电压 5.25 V
安装方式 Surface Mount
引脚数 6

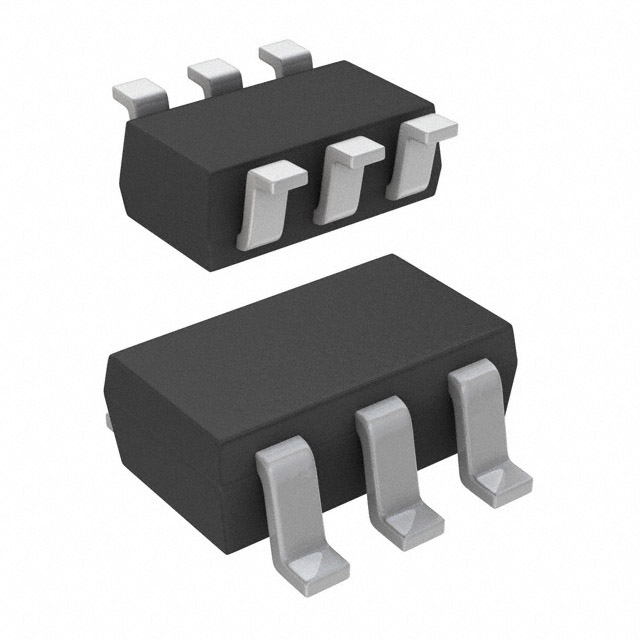

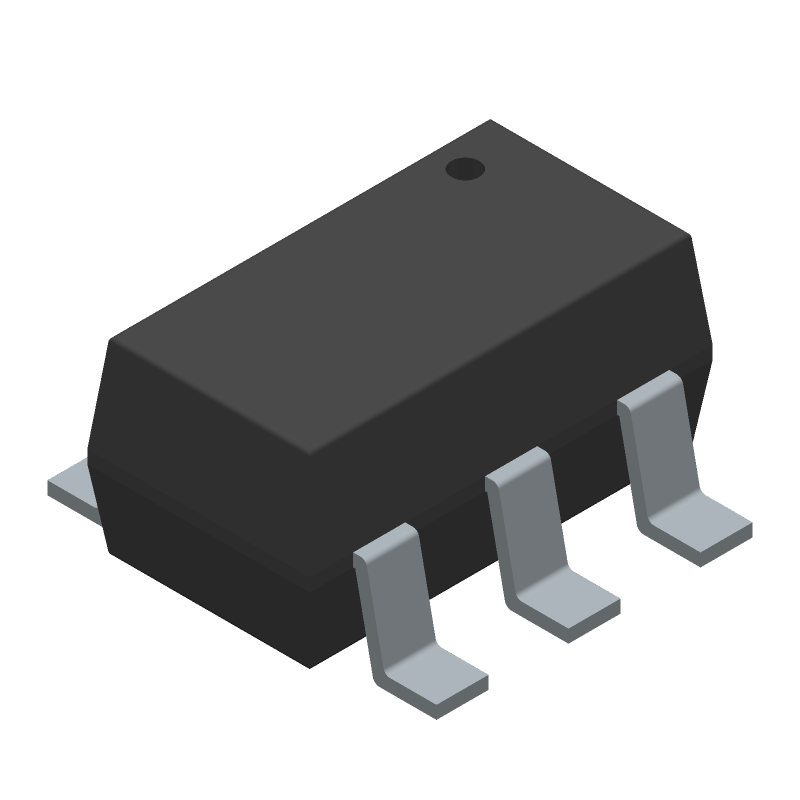

封装 SOT-23-6
封装 SOT-23-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADC121S101CIMF TI 德州仪器 | 当前型号 | 当前型号 |
ADC121S101QIMFX/NOPB 德州仪器 | 完全替代 | ADC121S101CIMF和ADC121S101QIMFX/NOPB的区别 |
ADC121S101QIMF/NOPB 德州仪器 | 完全替代 | ADC121S101CIMF和ADC121S101QIMF/NOPB的区别 |
ADC121S101CIMFX 德州仪器 | 完全替代 | ADC121S101CIMF和ADC121S101CIMFX的区别 |
