3 MSPS , 12位/ 10位/ 8位ADC,采用6引脚TSOT 3 MSPS, 12-/10-/8-Bit ADCs in 6-Lead TSOT
Product Details
The AD7276 is a 12-bit, high speed, low power, successive approximation analog-to-digital converters ADCs. The parts operate from a single 2.35 V to 3.6 V power supply and feature throughput rates of up to 3 MSPS. The parts contain a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 55 MHz.
The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS, and the conversion is also initiated at this point. There are no pipeline delays associated with the part.
The AD7276 uses advanced design techniques to achieve very low power dissipation at high throughput rates.
The reference for the part is taken internally from VDD. This allows the widest dynamic input range to the ADC; therefore, the analog input range for the part is 0 to VDD. The conversion rate is determined by the SCLK
**Product Highlights**
1. 3 MSPS ADCs in a 6-lead TSOT package
2. AD7476/AD7477/AD7478 and AD7476A/AD7477A/ AD7478A pin-compatible
3. High throughput with low power consumption
4. Flexible power/serial clock speed management. This allows maximum power efficiency at low throughput rates
5. Reference derived from the power supply
6. No pipeline delay. The parts feature a standard successive approximation ADC with accurate control of the sampling instant via a CS input and once-off conversion control.
### Features and Benefits
3.6 V
12.6 mW at 3 MSPS with 3 V supplies
70 dB SNR at 1 MHz input frequency
通道数 1
位数 12
耗散功率 12.6 mW
采样率 3 Msps
功耗 12.6 mW
分辨率Bits 12.0
输入电容 42.0 pF
模数转换数ADC 1
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 19.8 mW
输入通道数 1
输入电压 3 V
安装方式 Surface Mount
引脚数 6

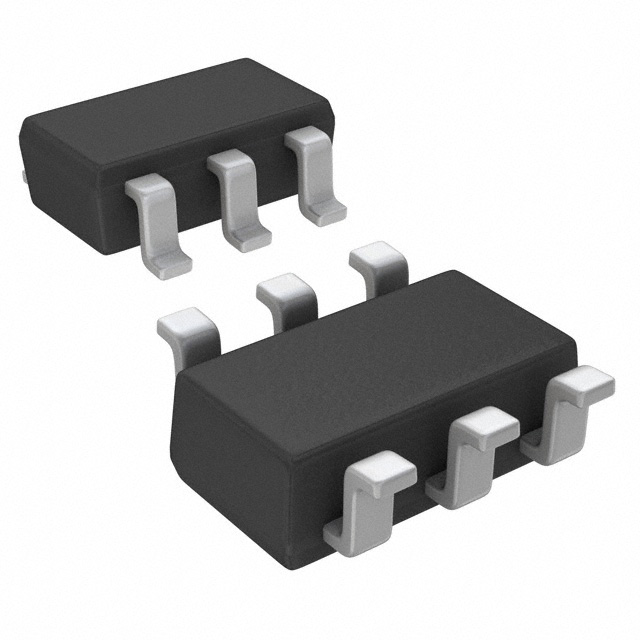

封装 TSOT-23-6
长度 2.9 mm
宽度 1.6 mm
高度 0.87 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7276AUJZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD7276AUJZ-500RL7 亚德诺 | 完全替代 | AD7276AUJZ-REEL7和AD7276AUJZ-500RL7的区别 |
AD7278AUJZ-500RL7 亚德诺 | 类似代替 | AD7276AUJZ-REEL7和AD7278AUJZ-500RL7的区别 |
AD7277AUJZ-500RL7 亚德诺 | 类似代替 | AD7276AUJZ-REEL7和AD7277AUJZ-500RL7的区别 |
