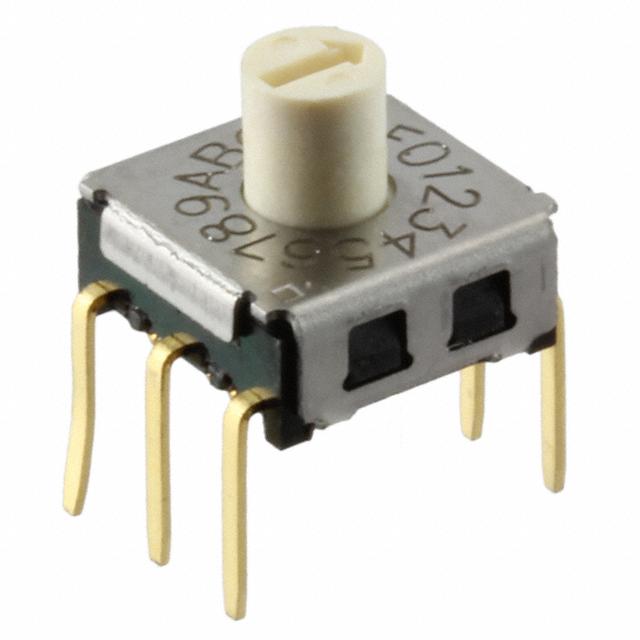

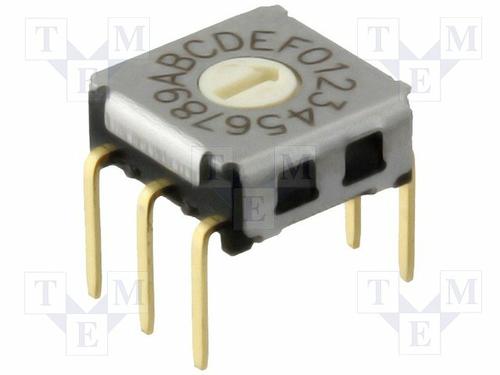

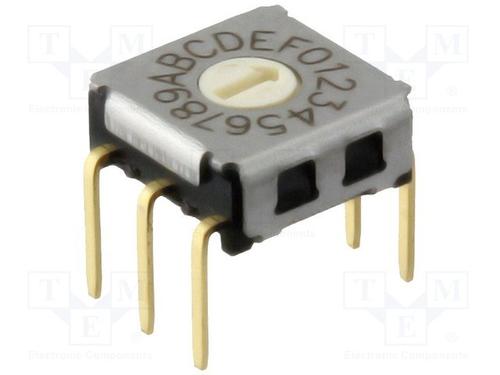

A6K-162RF

OMRON ELECTRONIC COMPONENTS  A6K-162RF  旋转开关, A6K系列, 不发光, 25 mA

微型旋转 DIP - A6K/A6KS 系列

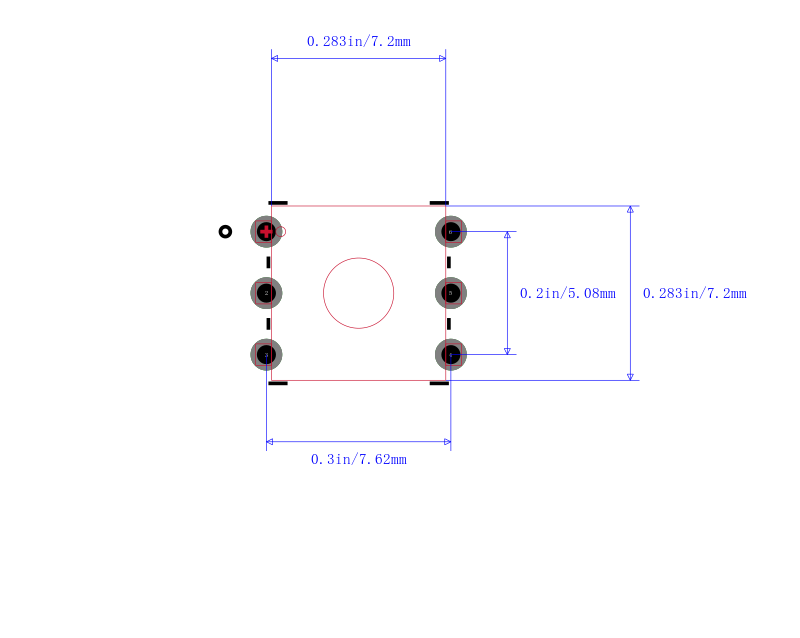

微型尺寸 7.2 x 7.2 mm

安装空间减少 50%（与传统型号相比）

镀金触点可确保高可靠性

得捷:
SWITCH ROTARY DIP HEX 25MA 24V

欧时:
Omron A6K-162RF 16位置 旋转嵌入式 通孔 DIP 开关, 25 mA@ 24 V 直流

艾睿:
Add current flow control to your printed circuit simply through the use of Omron&s;s A6K-162RF dual in-line package switch. It has a SP16T configuration. This device has a maximum current rating of 0.025 A @ 24VDC. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 80 °C. The A6K-162RF DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product is 7.2 mm long, 3 mm tall and 7.87 mm deep. This product&s;s terminal pitch is 2.54 mm.

Chip1Stop:
Switch DIP ON OFF SP16T 16 Flush Shaft 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube

TME:
Encoding switch; HEX/BCD; Positions:16; THT; Rcont max:100mΩ

Newark:
# OMRON ELECTRONIC COMPONENTS  A6K-162RF  Miniature Rotary Dip Switch

MASTER:
Switch DIP N.O./N.C. SP16T 16 Flush Shaft 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP N.O./N.C. SP16T 16 Flush Shaft 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube
