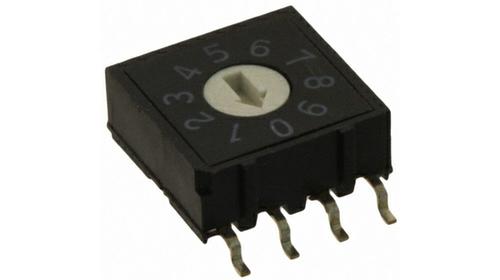

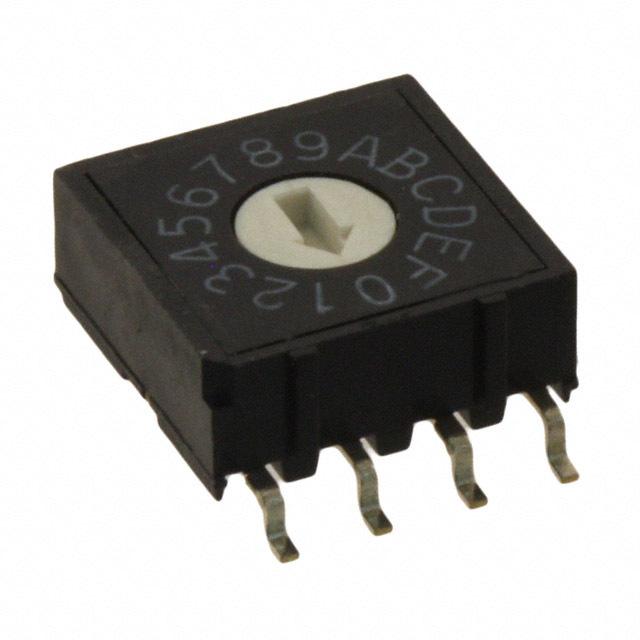

Switch DIP SP16T 16 Flush Screwdriver 0.025A 24VDC Gull Wing SMD Tube
● Improved solder heat resistance reflow peak solder temperature: 260 °C. ● Flat/Extended-actuator models available. ● Two different terminal arrangements allow the flexibility.
得捷:
SWITCH ROTARY DIP HEX 25MA 24V
艾睿:
Switch DIP N.O./N.C. SP16T 16 Flush Screwdriver 0.025A 24VDC Gull Wing SMD Tube
安富利:
Switch DIP SP16T 16 Flush Screwdriver 0.025A 24VDC Gull Wing SMD Tube
Chip1Stop:
Switch DIP SP16T 16 Flush Screwdriver 0.025A 24VDC Gull Wing SMD Stick
MASTER:
Switch DIP SP16T 16 Flush Screwdriver 0.025A 24VDC Gull Wing SMD Tube
Online Components:
Switch DIP N.O./N.C. SP16T 16 Flush Screwdriver 0.025A 24VDC Gull Wing SMD Tube
Electro Sonic:
Switch DIP SP16T 16 Flush Screwdriver 0.025A 24VDC Gull Wing SMD Tube
额定电流 25 mA
绝缘电阻 100 MΩ
针脚数 16
接触电阻 200 mΩ
开断电压 24.0 V
额定电流Max 0.025A @24VDC
工作温度Max 80 ℃
工作温度Min -25 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 200 mΩ
安装方式 Surface Mount
封装 DIP
长度 9.80 mm
宽度 9.8 mm
高度 4.7 mm
封装 DIP
工作温度 -25℃ ~ 80℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
A6RS-161RF Omron 欧姆龙 | 当前型号 | 当前型号 |
A6RS-161RF-P 欧姆龙 | 完全替代 | A6RS-161RF和A6RS-161RF-P的区别 |
