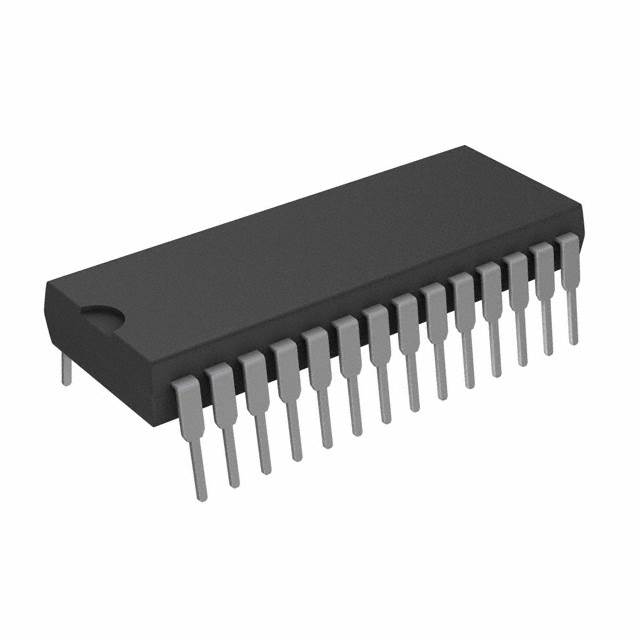

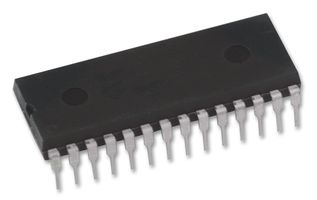

TEXAS INSTRUMENTS ADC0808CCN 模数转换器, 8 bit, 10 kSPS, 单, 4.5 V, 6 V, DIP
The is a µP compatible Analog-to-digital Converter ADC with 8-channel multiplexer. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals. The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs. The design of the ADC0808 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability and consumes minimal power. These features make this device ideally suited to applications from process.
电源电压DC 4.50V min
供电电流 300 µA
电路数 1
通道数 8
针脚数 28
位数 8
耗散功率 15 mW
采样率 10 ksps
功耗 1.50 mW
模数转换数ADC 1
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 875 mW
输入通道数 8
电源电压 4.5V ~ 6V
电源电压Max 6 V
电源电压Min 4.5 V
输入电压 5 V
安装方式 Through Hole
引脚数 28
封装 DIP-28
封装 DIP-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 信号处理, 自动化与过程控制
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADC0808CCN TI 德州仪器 | 当前型号 | 当前型号 |
ADC0808CCN/NOPB 德州仪器 | 类似代替 | ADC0808CCN和ADC0808CCN/NOPB的区别 |
ADC0809CCN/NOPB 德州仪器 | 类似代替 | ADC0808CCN和ADC0809CCN/NOPB的区别 |
ADC0809CCN 德州仪器 | 类似代替 | ADC0808CCN和ADC0809CCN的区别 |
