Switch DIP OFF ON SPST 10 Raised Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube
● Knife-edge structure enables washing without seal. ● Embossed taping models available for automatic mounting. ● Improved solder heat resistance reflow peak solder temperature: 260 °C.
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
艾睿:

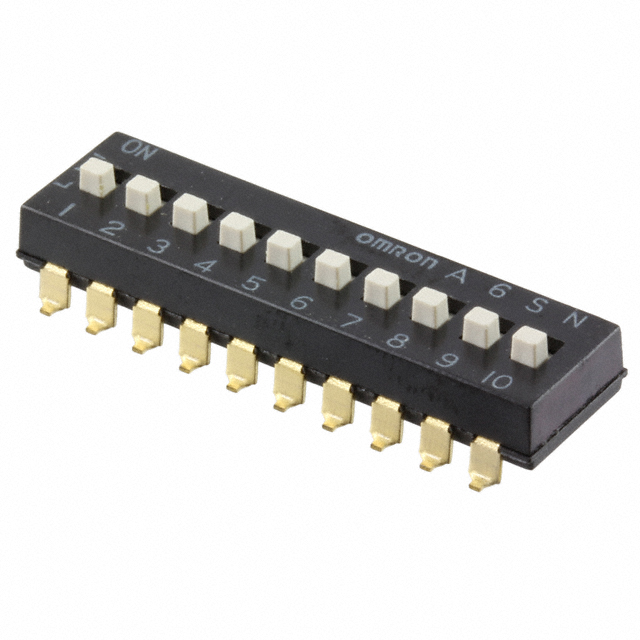

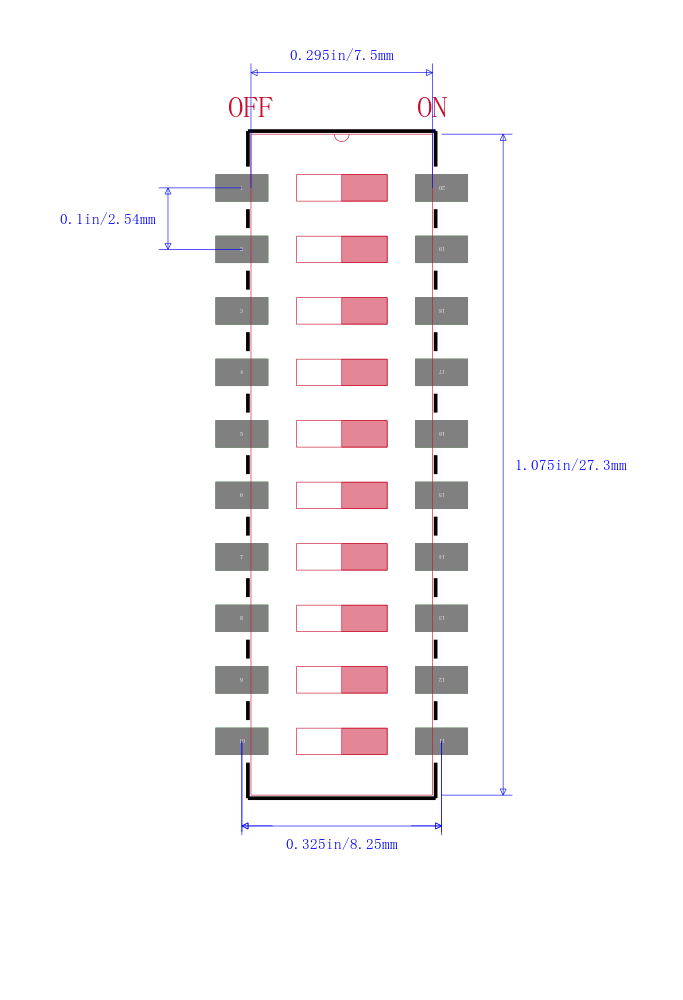

This A6SN-0104 dual in-line package switch from Omron can be easily customized and designed to be used on a printed circuit board. This device has a maximum current rating of 0.025 A @ 24VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -30 °C to 85 °C. The A6SN-0104 DIP switch has a gull wing termination style. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 27.3 mm long, 5.55 mm tall and 9.3 mm deep.
安富利:
Switch DIP OFF ON SPST 10 Raised Slide 0.025A 24VDC Gull Wing 2.54mm SMD Stick
Chip1Stop:
Switch DIP OFF ON SPST 10 Raised Slide 0.025A 24VDC Gull Wing 2.54mm SMD Stick
Newark:
# OMRON ELECTRONIC COMPONENTS A6SN-0104 Dip Switch
MASTER:
Switch DIP OFF ON SPST 10 Raised Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube
Electro Sonic:
Switch DIP OFF ON SPST 10 Raised Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
A6SN-0104 Omron 欧姆龙 | 当前型号 | 当前型号 |
A6SN-0104-P 欧姆龙 | 完全替代 | A6SN-0104和A6SN-0104-P的区别 |
