8位/ 10位/ 12位，高带宽，乘法DAC ，并行接口 8-/10-/12-Bit, High Bandwidth Multiplying DACs with Parallel Interface
Converting digital signals to analog signals such as audio or video? This DAC converter provided from Analog Devices will do just that! It has a current output. This device is based on R-2R architecture. This device"s digital interface is parallel. This DAC has a resolution of 8bit. This DAC has a temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device uses a single power supply.
输出接口数 1
通道数 1
位数 8
耗散功率 0.00025 W
采样率 20.4 Msps
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 0.25 mW
数模转换数DAC 1
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 16

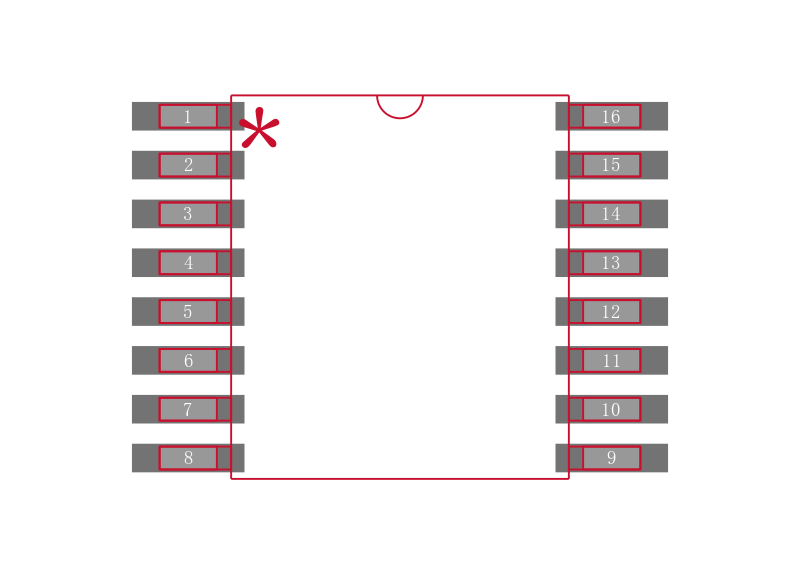

封装 TSSOP-16
高度 1.05 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD5424YRUZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD5424YRUZ 亚德诺 | 完全替代 | AD5424YRUZ-REEL和AD5424YRUZ的区别 |
AD5424YRUZ-REEL7 亚德诺 | 完全替代 | AD5424YRUZ-REEL和AD5424YRUZ-REEL7的区别 |
AD5424YRU 亚德诺 | 完全替代 | AD5424YRUZ-REEL和AD5424YRU的区别 |
